POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM - IG Power Source Circuit |
DESCRIPTION
When the engine switch is turned on (IG), the IG power source circuit supplies positive (+) voltage to the multiplex tilt and telescopic ECU.

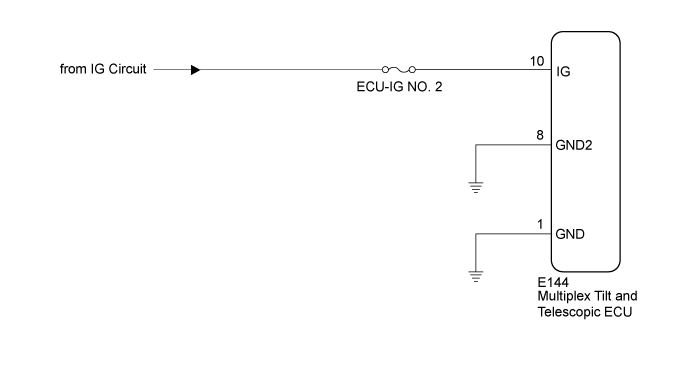

WIRING DIAGRAM
INSPECTION PROCEDURE
- HINT:
- Inspect the fuses for circuits related to this system before performing the following inspection procedure.
| 1.CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BATTERY) |
Disconnect the multiplex tilt and telescopic ECU connector.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection
| Switch Condition
| Specified Condition
|
E144-10 (IG) - Body ground
| Engine switch on (IG)
| 11 to 14 V
|

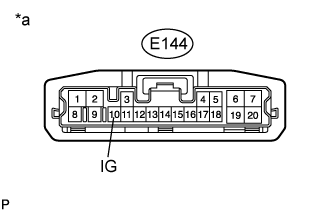

Text in Illustration*a
| Front view of wire harness connector
(to Multiplex Tilt and Telescopic ECU)
|
| | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
| 2.CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND) |
Disconnect the multiplex tilt and telescopic ECU connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Condition
| Specified Condition
|
E144-1 (GND) - Body ground
| Always
| Below 1 Ω
|
E144-8 (GND2) - Body ground
|

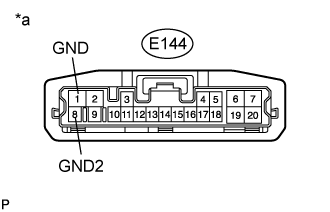

Text in Illustration*a
| Front view of wire harness connector
(to Multiplex Tilt and Telescopic ECU)
|
| | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
| OK |
|
|
|
| REPLACE MULTIPLEX TILT AND TELESCOPIC ECU (Click here) |
|
