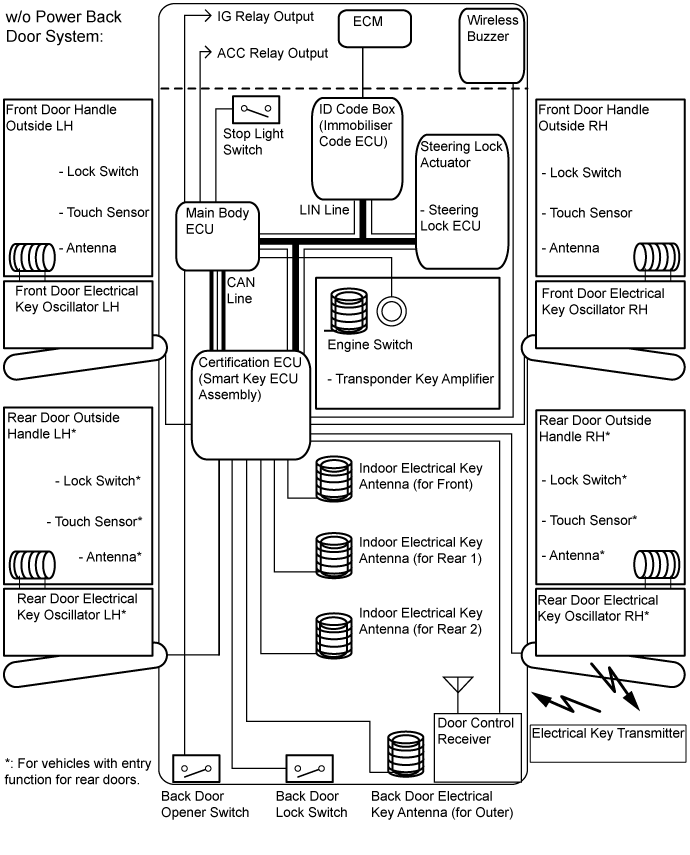

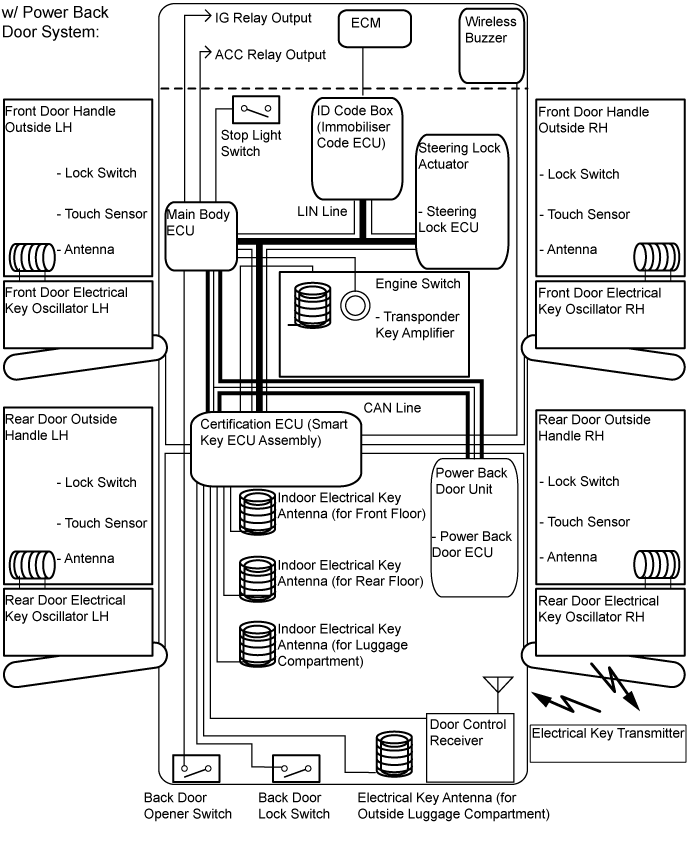

Entry And Start System (For Entry Function) -- System Diagram



Land Cruiser. Urj200, 202 Grj200 Vdj200.Theft Deterrent Keyless Entry.Entry And Start System (For Entry Function).Entry And Start System (For Entry Function) System Diagram


Land Cruiser. Urj200, 202 Grj200 Vdj200.Theft Deterrent Keyless Entry.Entry And Start System (For Entry Function).Entry And Start System (For Entry Function) System Diagram


Communication table:
Sender
Receiver
Signal
Line
Main Body ECU
Certification ECU (Smart key ECU assembly)
  1. IG signal
  2. ACC signal
  3. Engine switch signal
  4. Driver side door courtesy light switch signal
  5. Passenger side door courtesy light switch signal
  6. Rear LH side door courtesy light switch signal
  7. Rear RH side door courtesy light switch signal
  8. Vehicle type handle signal
  9. Back door courtesy light switch signal
  10. Back door opener switch signal
  11. Wireless door lock buzzer sound signal
  12. Door lock position signal
CAN
Main Body ECU
Power Back Door ECU*
Back door opener switch signal*
CAN
Meter ECU
  1. Certification ECU (Smart key ECU assembly)
  2. Main Body ECU
Vehicle speed signal
CAN
Steering Lock ECU
Certification ECU (Smart key ECU assembly)
  1. Encryption code signal
  2. Encryption code finish signal
  3. Encryption calculate fixed number memory requirement signal
  4. During entry control signal
LIN
ID Code Box (Immobiliser code ECU)
Certification ECU (Smart key ECU assembly)
Matching request random number signal
LIN
Certification ECU (Smart key ECU assembly)
Meter ECU
  1. Inside key existence warning signal
  2. Low key battery warning signal
  3. Shift position warning signal
  4. Meter buzzer request signal
  5. Door open indicate signal
  6. Steering lock warning signal
CAN
Certification ECU (Smart key ECU assembly)
Main Body ECU
  1. Entry door lock signal
  2. Entry door unlock signal
  3. Entry lock switch signal
  4. Door lock/unlock standby control signal
CAN
Certification ECU (Smart key ECU assembly)
Main Body ECU
  1. Immobiliser ID entry required signal
  2. Key code check signal
LIN
Certification ECU (Smart key ECU assembly)
ID Code Box (Immobiliser code ECU)
Replay code signal
LIN
  1. *: w/ Power Back Door System
