Washer Motor (For Hatchback Rear Side) Removal

Vehicle Exterior. Yaris. Ncp93, 131
Wiper Washer. Yaris. Ncp93, 131

  1. REMOVE FRONT WHEEL RH

  2. REMOVE FRONT FENDER LINER RH

  3. DRAIN WINDSHIELD WASHER FLUID

  4. REMOVE REAR WASHER MOTOR AND PUMP ASSEMBLY

  5. REMOVE WASHER JAR PROTECTOR

Washer Motor (For Hatchback Rear Side) -- Removal



1. REMOVE FRONT WHEEL RH


2. REMOVE FRONT FENDER LINER RH
HINT:
Use the same procedures for the LH side (YARIS_NCP93 RM000001BXX01FX_01_0007.html).


3. DRAIN WINDSHIELD WASHER FLUID


    Yaris. Ncp93, 131

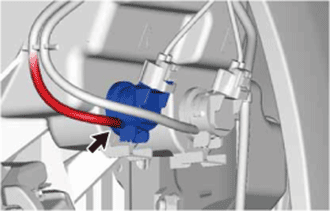

  1. Disconnect the washer hose from the rear washer motor and pump, and drain the windshield washer fluid.

    CAUTION:
    Use a container to collect the washer fluid.


4. REMOVE REAR WASHER MOTOR AND PUMP ASSEMBLY


    Yaris. Ncp93, 131

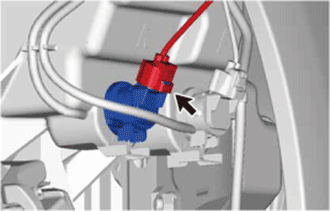

  1. Disconnect the connector.



    Yaris. Ncp93, 131

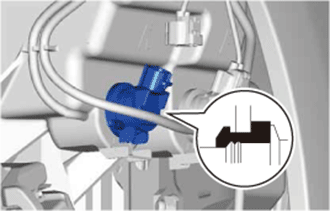

  1. Remove the rear washer motor and pump.



5. REMOVE WASHER JAR PROTECTOR

  1. Remove the washer jar protector from the washer jar.
