Parking Brake Lever (For Hatchback) -- Removal |
1. REMOVE REAR CONSOLE BOX ASSEMBLY |
2. REMOVE PARKING BRAKE LEVER SUB-ASSEMBLY |
![]() |
Remove the lock nut and separate the parking brake equalizer from parking brake lever sub-assembly.
Text in Illustration *1 Parking brake equalizer *2 Lock nut

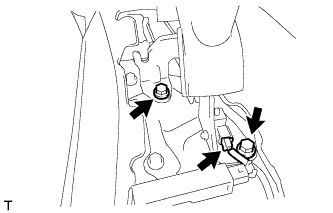

Disconnect the parking brake switch connector.
![]() |
Remove the 2 bolts and the parking brake lever sub-assembly.
3. REMOVE PARKING BRAKE SWITCH ASSEMBLY |
![]() |

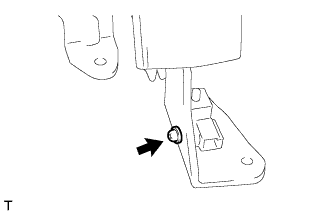

Remove the screw and parking brake switch assembly.
