Low Pitched Horn (For Sedan) -- Removal |
| 1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL |
| 2. REMOVE FRONT SPOILER COVER (w/ Front Spoiler) |
Remove the 2 screws, the 10 bolts and the front spoiler cover.
 |
| 3. REMOVE FRONT BUMPER COVER (w/ Large Front Spoiler) |
Apply protective tape, as shown in the illustration.
 |
Remove the 9 bolts and the 7 screws.
 |
Remove the 2 screw grommets.
Remove the 6 clips.
Disengage the 6 claws and remove the front bumper cover.
 |
Disconnect the connectors.
- HINT:
- If the vehicle is equipped with fog lights, disconnect the connector.
Remove the 2 clips, the screw grommet and the 6 spring nuts.
 |
| 4. REMOVE FRONT BUMPER COVER (w/ Small Front Spoiler) |
Apply protective tape, as shown in the illustration.
|
Remove the 5 screws and the 3 bolts.
 |
Remove the 2 screw grommets.
Remove the 6 clips.
Disengage the 6 claws and remove the front bumper cover.
|
Disconnect the connectors.
- HINT:
- If the vehicle is equipped with fog lights, disconnect the connectors.
Remove the 2 clips, the screw grommet and the 10 spring nuts.
 |
| 5. REMOVE FRONT BUMPER COVER (w/o Front Spoiler) |
Apply protective tape, as shown in the illustration.
|
Remove the 7 screws and the 3 bolts.
 |
Remove the 2 screw grommets.
Remove the 6 clips.
Disengage the 6 claws and remove the front bumper cover.
|
Disconnect the connectors.
- HINT:
- If the vehicle is equipped with fog lights, disconnect the connectors.
Remove the 2 clips and the screw grommet.
 |

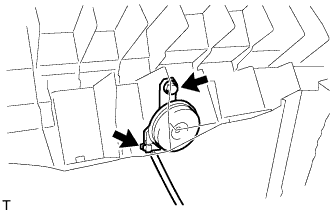

| 6. REMOVE LOW PITCHED HORN ASSEMBLY |
Disconnect the low pitched horn connector.
 |
Remove the bolt and the low pitched horn.
