Low Pitched Horn (For Sedan) -- Installation |
| 1. INSTALL LOW PITCHED HORN ASSEMBLY |

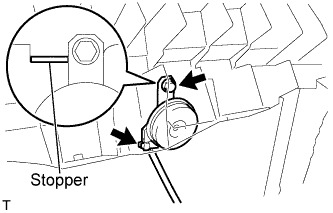

Install the low pitched horn with the bolt.
- Torque:
- 19.5 N*m{200 kgf*cm, 14 ft.*lbf}
- NOTICE:
- Do not place the low pitched horn over the stopper of the body.
 |
Connect the low pitched horn connector.
| 2. INSTALL FRONT BUMPER COVER (w/ Large Front Spoiler) |
Install the 2 clips, screw grommet and the 6 spring nuts.
 |
Engage the 6 claws and install the front bumper cover.
 |
Connect the connectors.
- HINT:
- If the vehicle is equipped with fog lights, connect the connector.
Install the 6 clips.
 |
Install the 2 screw grommets.
Tighten the 9 bolts and the 7 screws.
Remove the protective tape.
 |
| 3. INSTALL FRONT BUMPER COVER (w/ Small Front Spoiler) |
Install the 2 clips, the screw grommet and the 10 spring nuts.
 |
Engage the 6 claws and install the front bumper cover.
|
Connect the connectors.
- HINT:
- If the vehicle is equipped with fog lights, connect the connectors.
Install the 6 clips.
 |
Install the 2 screw grommets.
Tighten the 5 screws and the 3 bolts.
Remove the protective tape.
|
| 4. INSTALL FRONT BUMPER COVER (w/o Front Spoiler) |
Install the 2 clips and the screw grommet.
 |
Engage the 6 claws and install the front bumper cover.
|
Connect the connectors.
- HINT:
- If the vehicle is equipped with fog lights, connect the connectors.
Install the 6 clips.
 |
Install the 2 screw grommets.
Tighten the 7 screws and the 3 bolts.
Remove the protective tape.
|
| 5. INSTALL FRONT SPOILER COVER (w/ Front Spoiler) |
Install the front spoiler cover with the 2 screws and the 10 bolts.
 |
| 6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL |
- Torque:
- 5.4 N*m{55 kgf*cm, 48 in.*lbf}
