Shift Lever (For Hatchback) Removal

Drivetrain. Yaris. Ncp93, 131
U340E Automatic Transmission Transaxle. Yaris. Ncp93, 131

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

  2. REMOVE REAR CONSOLE BOX ASSEMBLY

  3. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

  4. REMOVE SHIFT LEVER ASSEMBLY

Shift Lever (For Hatchback) -- Removal



1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY


    Yaris. Ncp93, 131

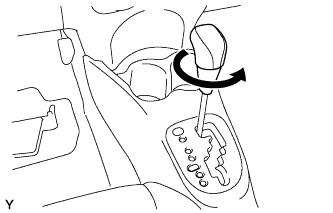

  1. Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly from the shift lever assembly.



2. REMOVE REAR CONSOLE BOX ASSEMBLY
(YARIS_NCP93 RM000003726005X.html)


3. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

  1. Move the shift lever to N.



    Yaris. Ncp93, 131

  1. Disconnect the end of the transmission control cable assembly from the shift lever assembly.



    Yaris. Ncp93, 131.U340E Automatic Transmission Transaxle.Automatic Transaxle System (For Sedan).Shift Lever (For Hatchback) Removal

  1. Rotate the nut counterclockwise approximately 180°, and while supporting the nut, separate the transmission control cable assembly from the shift lever retainer.

    Text in Illustration
    *1
    		Nut
    NOTICE:
    Do not rotate the nut excessively. If the nut is rotated too far, the internal spring will be damaged and the transmission control cable assembly will be unusable.


4. REMOVE SHIFT LEVER ASSEMBLY


    Yaris. Ncp93, 131

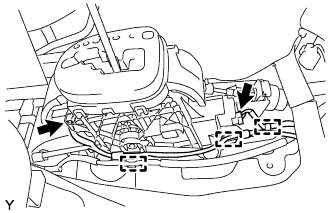

  1. Disconnect the 2 connectors from the shift lever assembly.

  1. Disengage the 3 clamps and separate the wire harness from the shift lever assembly.



    Yaris. Ncp93, 131

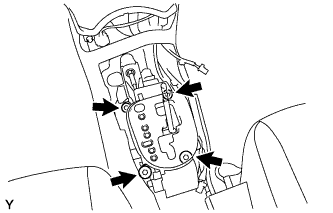

  1. Remove the 4 bolts and the shift lever assembly.
