Front Lower Suspension Arm (For Hatchback Rh Side) -- Installation |
| 1. TEMPORARILY TIGHTEN FRONT LOWER SUSPENSION ARM SUB-ASSEMBLY RH |
Install the front lower suspension arm sub-assembly RH with the bolt.
| 2. INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY |
| 3. INSTALL FRONT WHEEL |
- Torque:
- 103 N*m{1050 kgf*cm, 76 ft.*lbf}
| 4. STABILIZE SUSPENSION |
Lower the vehicle from the jack.
Bounce the vehicle up and down several times to stabilize the suspension.
| 5. FULLY TIGHTEN FRONT LOWER SUSPENSION ARM SUB-ASSEMBLY RH |
 |

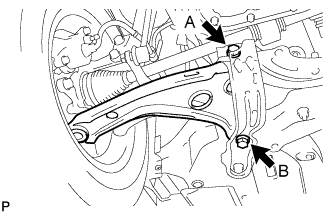

Fully tighten the 2 bolts.
- Torque:
- Bolt A:
- 137 N*m{1397 kgf*cm, 101 ft.*lbf}
- Bolt B:
- 151 N*m{1540 kgf*cm, 111 ft.*lbf}
| 6. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT |
