Oil Pump (For Hatchback) Disassembly

Drivetrain. Yaris. Ncp93, 131
U340E Automatic Transmission Transaxle. Yaris. Ncp93, 131

  1. REMOVE FRONT OIL PUMP BODY O-RING

  2. REMOVE STATOR SHAFT ASSEMBLY

  3. REMOVE FRONT OIL PUMP DRIVE GEAR

  4. REMOVE FRONT OIL PUMP DRIVEN GEAR

  5. REMOVE FRONT OIL PUMP OIL SEAL

  6. REMOVE CLUTCH DRUM OIL SEAL RING

Oil Pump (For Hatchback) -- Disassembly



1. REMOVE FRONT OIL PUMP BODY O-RING


Yaris. Ncp93, 131.U340E Automatic Transmission Transaxle.Automatic Transaxle System (For Sedan).Oil Pump (For Hatchback) Disassembly

  1. Remove the front oil pump body O-ring from the front oil pump body.



2. REMOVE STATOR SHAFT ASSEMBLY


Yaris. Ncp93, 131.U340E Automatic Transmission Transaxle.Automatic Transaxle System (For Sedan).Oil Pump (For Hatchback) Disassembly

  1. Using "TORX" socket wrench T30, remove the 10 "TORX" screws and the stator shaft assembly.



3. REMOVE FRONT OIL PUMP DRIVE GEAR


Yaris. Ncp93, 131.U340E Automatic Transmission Transaxle.Automatic Transaxle System (For Sedan).Oil Pump (For Hatchback) Disassembly

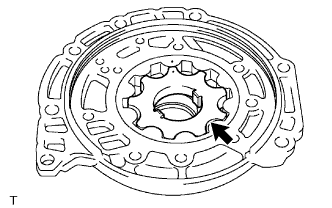

  1. Remove the front oil pump drive gear from the front oil pump body.



4. REMOVE FRONT OIL PUMP DRIVEN GEAR


Yaris. Ncp93, 131.U340E Automatic Transmission Transaxle.Automatic Transaxle System (For Sedan).Oil Pump (For Hatchback) Disassembly

  1. Remove the front oil pump driven gear from the front oil pump body.



5. REMOVE FRONT OIL PUMP OIL SEAL


Yaris. Ncp93, 131.U340E Automatic Transmission Transaxle.Automatic Transaxle System (For Sedan).Oil Pump (For Hatchback) Disassembly

  1. Using SST, remove the front oil pump oil seal from the front oil pump body.

    SST
    09308-00010


6. REMOVE CLUTCH DRUM OIL SEAL RING


Yaris. Ncp93, 131.U340E Automatic Transmission Transaxle.Automatic Transaxle System (For Sedan).Oil Pump (For Hatchback) Disassembly

  1. Using a screwdriver, remove the 2 clutch drum oil seal rings from the stator shaft assembly.
