Oil Pump (For Sedan) Disassembly

Drivetrain. Yaris. Ncp93, 131

  1. REMOVE FRONT OIL PUMP BODY O-RING

  2. REMOVE STATOR SHAFT ASSEMBLY

  3. REMOVE FRONT OIL PUMP DRIVE GEAR

  4. REMOVE FRONT OIL PUMP DRIVEN GEAR

  5. REMOVE FRONT OIL PUMP OIL SEAL

  6. REMOVE CLUTCH DRUM OIL SEAL RING

Oil Pump (For Sedan) -- Disassembly



1. REMOVE FRONT OIL PUMP BODY O-RING


Yaris. Ncp93, 131
  1. Remove the front oil pump O-ring from the oil pump.



2. REMOVE STATOR SHAFT ASSEMBLY


Yaris. Ncp93, 131
  1. Using "Torx" socket wrench T30, remove the 10 "Torx" screws.



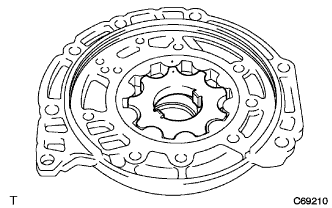

3. REMOVE FRONT OIL PUMP DRIVE GEAR


Yaris. Ncp93, 131
  1. Remove the front oil pump drive gear from the oil pump body.



4. REMOVE FRONT OIL PUMP DRIVEN GEAR


Yaris. Ncp93, 131
  1. Remove the front oil pump driven gear from the oil pump body.



5. REMOVE FRONT OIL PUMP OIL SEAL


Yaris. Ncp93, 131.U340E Automatic Transmission Transaxle.Automatic Transaxle System (For Sedan).Oil Pump (For Sedan)  Disassembly

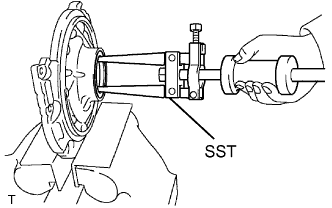

  1. Using SST, remove the front oil pump oil seal from the oil pump body.

    SST
    09308-00010


6. REMOVE CLUTCH DRUM OIL SEAL RING


Yaris. Ncp93, 131
  1. Using a screwdriver, remove the 2 clutch drum oil seal rings from the stator shaft assembly.
