Transmission Control Cable (For Hatchback) Installation

Connect the transmission control cable assembly to the control shaft lever with the nut.

Torque:

12 N*m{122 kgf*cm, 9 ft.*lbf}

Install the transmission control cable assembly to the No. 1 transmission control cable bracket with a new clip.

NOTICE:

Make sure that the marking on the cable is aligned with the slit in the No. 1 transmission control cable bracket before installing the cable.

Install the transmission control cable assembly to the control cable support.

Install the transmission control cable assembly with the 3 nuts.

Torque:

5.0 N*m{51 kgf*cm, 44 in.*lbf}

Install the front No. 1 floor heat insulator with the 2 bolts and nut.

Torque:

5.5 N*m{56 kgf*cm, 49 in.*lbf}

Install the air cleaner bracket with the 2 bolts.

Torque:

20 N*m{199 kgf*cm, 14 ft.*lbf}

Engage the clamp and connect the wire harness to the air cleaner bracket.

Install the air cleaner case onto the air cleaner bracket with the 2 bolts.

Torque:

7.8 N*m{80 kgf*cm, 69 in.*lbf}

Engage the clamp and connect the wire harness to the air cleaner case.

Install the air cleaner element onto the air cleaner case.

Install the air cleaner cap sub-assembly with No. 1 air cleaner hose onto the throttle body assembly

Engage the 2 clamps and connect the air cleaner cap sub-assembly to the air cleaner case sub-assembly.

Tighten the hose clamp.

Torque:

3.0 N*m{31 kgf*cm, 27 in.*lbf}

Connect the vacuum switching valve assembly connector.

Connect the mass air flow meter connector.

Engage the 2 clamps and connect the wire harness to the air cleaner cap sub-assembly and vacuum switching valve assembly.

Connect the No. 2 fuel vapor feed hose to the intake manifold.

Connect the fuel vapor feed hose assembly to the No. 1 air cleaner hose and vacuum switching valve assembly with the 2 hose clamps.

Engage the clamp and connect the fuel vapor feed hose assembly to the No. 1 air cleaner hose.

Install the battery carrier with the 5 bolts.

Torque:

17 N*m{173 kgf*cm, 13 ft.*lbf}

Engage the 6 clamps and connect the wire harness to the battery carrier.

Install the battery onto the battery tray with the battery clamp.

Torque:

3.5 N*m{36 kgf*cm, 31 in.*lbf}

Connect the cable to the battery terminal.

Torque:

5.4 N*m{55 kgf*cm, 48 in.*lbf}

Rotate the nut of the transmission control cable assembly counterclockwise 180° and push in the lock while holding the nut.

Install the outer part of the transmission control cable assembly to the shift lever retainer.

NOTICE:

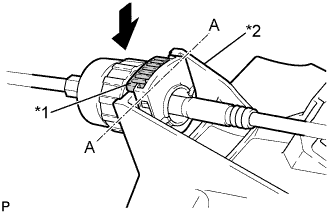

After installation, check that the cable outer lock extends past the line A-A, as shown in the diagram.

Confirm that the shift lever is in N and connect the end of the transmission control cable assembly to the shift lever assembly.

NOTICE:

1. Push the cable end to the base of the pin to be sure that it is installed securely.

2. Install the cable end adjustment mechanism so that the lock faces the driver seat.


Move the shift lever to N.

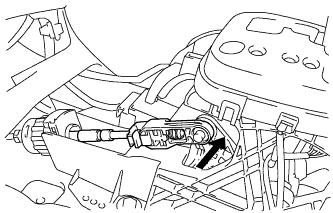

Slide the adjuster case cover in the direction shown by the arrow.

Using a precision screwdriver, pull up the lock piece.

Press the lock piece into the adjuster case.

HINT:

Lightly pull the cable rod towards the back of the vehicle to eliminate slack, and then lock the adjuster.

Slide the adjuster case cover in the direction shown by the arrow.

NOTICE:

If the cover is not pushed over the protrusion on the lock, the cable will not lock and shift operation will not be accurate.

Turn the ignition switch to ON and step on the brake pedal.

Confirm that the shift lever moves smoothly through all of the shift positions and the position indicator shows the correct shift lever position.

Start the engine and confirm that the vehicle moves forward when the shift lever is moved from N to D.
