Front Wiper Motor (For Sedan) Inspection

Check the LO operation.

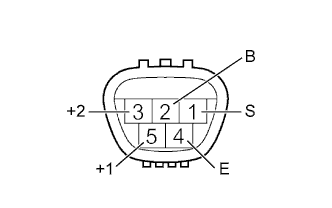

1. Connect the positive (+) battery lead to terminal 5 (+1) of the connector and the negative (-) battery lead to terminal 4 (E), then check that the motor operates at low speed (LO).


   Standard:

   Motor operates at low speed (LO).


   If the result is not as specified, replace the motor.


Check the HI operation.

1. Connect the positive (+) battery lead to terminal 3 (+2) of the connector and the negative (-) battery lead to terminal 4 (E), then check that the motor operates at high speed (HI).


   Standard:

   Motor operates at high speed (HI).


   If the result is not as specified, replace the motor.


Check the automatic stop operation.

1. Connect the positive (+) battery lead to terminal 5 (+1) of the connector and the negative (-) battery lead to terminal 4 (E). With the motor operating at low speed (LO), disconnect terminal 5 (+1) to stop the wiper motor operation at any position other than the automatic stop position.


2. Using SST, connect terminals 1 (S) and 5 (+1). Connect the positive (+) battery lead to terminal 2 (B) of the connector to restart the motor operation at low speed (LO).


   SST

   09843-18040

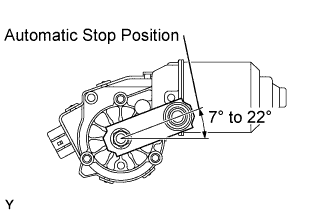

3. Check that the motor stops automatically in the automatic stop position.


   Standard:

   Refer to the illustration.


   If the result is not as specified, replace the motor assembly.
