DTC P2759 Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU) |
DESCRIPTION
Refer to P2757 (YARIS_NCP93 RM000000W8D0AVX_01.html).DTC No.
| DTC Detection Condition
| Trouble Area
|
P2759
| Open or short is detected in shift solenoid valve SLU circuit for 1 second or more while driving (1-trip detection logic).
| - Wire harness or connector
- Transmission wire
- Shift solenoid valve SLU
- ECM
|
MONITOR DESCRIPTION
When an open or short in the linear solenoid valve (SLU) circuit is detected, the ECM interprets this as a fault. The ECM turns on the MIL and stores the DTC.
MONITOR STRATEGY
Related DTCs
| P2759: Shift solenoid valve SLU/Range check
|
Required sensors/Components
| Shift solenoid valve SLU
|
Frequency of operation
| Continuous
|
Duration
| 1.0 second
|
MIL operation
| Immediate
|
Sequence of operation
| None
|
TYPICAL ENABLING CONDITIONS
The monitor runs whenever the following DTCs are not present.
| None
|
Solenoid current cut status
| Not cut
|
Battery voltage
| 11 V or more
|
CPU commanded duty ratio
| 19% or more
|
Ignition switch
| ON
|
Starter
| OFF
|
TYPICAL MALFUNCTION THRESHOLDS
Solenoid status (SLU) from MIC
| Fail
|
COMPONENT OPERATING RANGE
Solenoid status (SLU)
| Resistance: 5.0 to 5.6 Ω at 20°C (68°F)
|

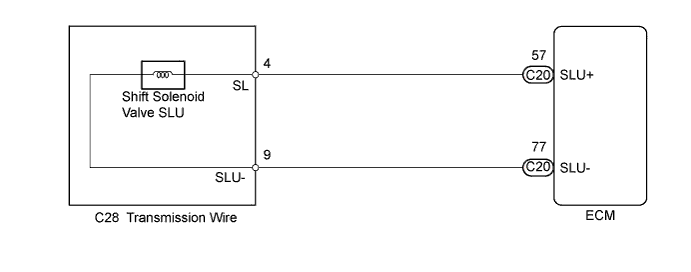

WIRING DIAGRAM
INSPECTION PROCEDURE
- NOTICE:
- Perform the universal trip to clear permanent DTCs (YARIS_NCP93 RM000000W770MGX.html).
| 1.INSPECT TRANSMISSION WIRE (SHIFT SOLENOID VALVE SLU) |
Disconnect the transmission wire connector from the transaxle.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Condition
| Specified Condition
|
4 (SL) - 9 (SLU-)
| 20°C (68°F)
| 5.0 to 5.6 Ω
|
4 (SL) - Body ground
| Always
| 10 kΩ or higher
|
9 (SLU-) - Body ground
| Always
| 10 kΩ or higher
|

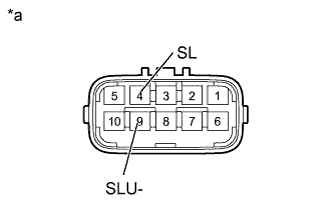

Text in Illustration*a
| Component without harness connected
(Transmission Wire)
|
| 2.CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM) |
Connect the transmission connector to the transaxle.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Condition
| Specified Condition
|
C20-57 (SLU+) - C20-77 (SLU-)
| 20°C (68°F)
| 5.0 to 5.6 Ω
|
C20-57 (SLU+) - Body ground
| Always
| 10 kΩ or higher
|
C20-77 (SLU-) - Body ground
| Always
| 10 kΩ or higher
|

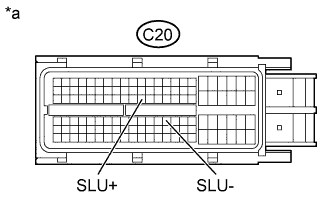

Text in Illustration*a
| Front view of wire harness connector
(to Transmission Wire)
|
| | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
| 3.INSPECT SHIFT SOLENOID VALVE SLU |
Remove shift solenoid valve SLU.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Condition
| Specified Condition
|
1 - 2
| 20°C (68°F)
| 5.0 to 5.6 Ω
|
Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.
- OK:
- The solenoid makes operating sounds.
Text in Illustration*a
| Component without harness connected
(Shift Solenoid Valve SLU)
|
