Oil Pump Reassembly

Engine. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35
3Zr-Fae Lubrication. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35

  1. INSTALL OIL PUMP RELIEF VALVE

  2. INSTALL OIL PUMP ROTOR SET

  3. INSTALL OIL PUMP COVER

Oil Pump -- Reassembly



1. INSTALL OIL PUMP RELIEF VALVE


    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35.3Zr-Fae Lubrication.Lubrication System.Oil Pump Reassembly

  1. Coat the relief valve and relief valve hole with engine oil.

    Text in Illustration
    *1
    		Relief Valve
    *2
    		Relief Valve Spring
    *3
    		Relief Valve Plug

  1. Insert the relief valve and spring into the pump body hole.

  1. Using a 22 mm socket wrench, install the plug.

    Torque:
    37 N*m{377 kgf*cm, 27 ft.*lbf}


2. INSTALL OIL PUMP ROTOR SET


    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35.3Zr-Fae Lubrication.Lubrication System.Oil Pump Reassembly

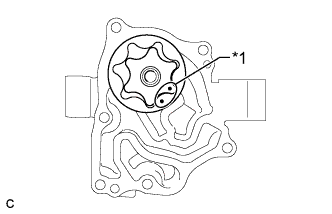

  1. Coat the oil pump drive and driven rotors with engine oil, and place them into the oil pump with the marks facing the oil pump cover side.

    Text in Illustration
    *1
    		Alignment Mark


3. INSTALL OIL PUMP COVER


    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35

  1. Install the oil pump cover with the 6 bolts.

    Torque:
    8.8 N*m{90 kgf*cm, 78 in.*lbf}
