Downhill Assist Control Switch Inspection

Brake. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35
Brake Control. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35

  1. CHECK DOWNHILL ASSIST CONTROL SWITCH

Downhill Assist Control Switch -- Inspection



1. CHECK DOWNHILL ASSIST CONTROL SWITCH


    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35.Brake Control.Anti-Lock Brake System.Downhill Assist Control Switch Inspection

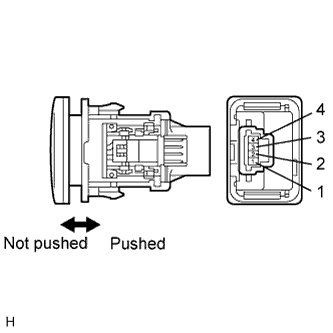

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		Switch Condition
    		Specified Condition
    1 - 4
    		Not pushed
    		10 kΩ or higher
    1 - 4
    		Pushed
    		Below 25 Ω
    If the result is not as specified, replace the switch.

  1. Check the illumination operation.

    OK:
    Measurement Condition
    		Specified Condition
    Battery positive (+) → Terminal 3
    Battery negative (-) → Terminal 2
    		Bulb illuminates
    If the result is not as specified, replace the switch.
