Parking Brake Lever On-Vehicle Inspection

Brake. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35
Parking Brake. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35

  1. CHECK PARKING BRAKE SWITCH ASSEMBLY

Parking Brake Lever -- On-Vehicle Inspection



1. CHECK PARKING BRAKE SWITCH ASSEMBLY

  1. Remove the rear console box (RAV4_ACA30 RM000001RHJ00GX.html).

    HINT:
    Refer to the procedures from the removal of the No. 1 console upper panel garnish up until the removal of the rear console box sub-assembly.

  1. Disconnect the parking brake switch connector.



    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35.Parking Brake.Parking Brake System.Parking Brake Lever On-Vehicle Inspection

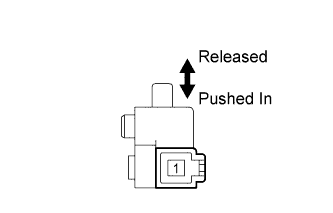

  1. Measure the resistance of the switch.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    1 - Body ground
    		Parking brake switch ON (Switch pin released)
    		Below 1 Ω
    1 - Body ground
    		Parking brake switch OFF (Switch pin pushed in)
    		10 kΩ or higher
    If the result is not as specified, replace the switch assembly.
