Front Speed Sensor -- Installation |
- HINT:
- Use the same procedure for the RH and LH sides.
- The procedures listed below are for the LH side.
1. INSTALL FRONT SPEED SENSOR LH |
- NOTICE:
- To prevent interference with other parts, do not twist the painted line areas of the sensor wire when installing it.
Set the sensor into the knuckle, and then install the sensor with the bolt.
- Torque:
- 8.5 N*m{87 kgf*cm, 75 in.*lbf}
- NOTICE:
- Keep the sensor tip and sensor installation hole free from foreign matter.
- Firmly insert the sensor body into the knuckle before tightening the bolt.
- After installing the sensor to the knuckle, make sure that there is no clearance between the sensor stay and knuckle. Also make sure that no foreign matter is stuck between the parts.
- To prevent interference between the sensor and magnetic rotor, do not rotate the sensor body during or after the insertion of the sensor body to the knuckle.
![]() |
Install the sensor clamp and sensor clip as follows.
Simultaneously perform the following: 1) hang the hook part of the sensor clamp (labeled A) on the part of the flexible hose bracket (labeled C); and 2) insert the hook part of the sensor clamp (labeled B) to the part of the flexible hose bracket (labeled D).
- NOTICE:
- Do not twist the sensor wire when installing the clamp.
Install the sensor clamp to the flexible hose clamp and flexible hose bracket with the bolt (labeled E).
- Torque:
- 18.5 N*m{189 kgf*cm, 14 ft.*lbf}
Insert the sensor clip (labeled F) into the hole on the absorber lower bracket.
Install the sensor clamp and sensor clip as follows.
Set the sensor clamp (labeled G) on the side member, and then install the bolt (labeled H).
- Torque:
- 8.5 N*m{87 kgf*cm, 75 in.*lbf}
- NOTICE:
- Do not twist the sensor wire when installing the clamp.
Insert the sensor clip (labeled I) into the hole on the apron.
![]() |
Connect the sensor connector.
![]() |
2. INSTALL FRONT FENDER LINER LH |
![]() |
- HINT:

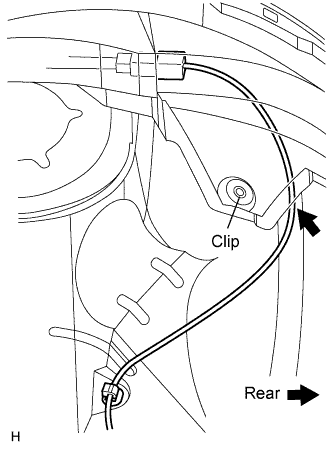

- Install the fender liner so that the sensor wire harness passes beyond the fender liner installation clip towards the rear side of the vehicle.
3. INSTALL FRONT WHEEL |
- Torque:
- 103 N*m{1050 kgf*cm, 76 ft.*lbf}
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL |
5. CHECK SPEED SENSOR SIGNAL |
w/o VSC:
Check the speed sensor signal (RAV4_ACA30 RM000000ONN01NX.html).
w/ VSC:
Check the speed sensor signal (RAV4_ACA30 RM0000022CZ007X.html).
