  1. INSTALL BRAKE ACTUATOR BOLT CUSHION

  2. INSTALL BRAKE ACTUATOR CASE COLLAR

  3. INSTALL BRAKE ACTUATOR BRACKET

Abs And Traction Actuator (W/ Vsc) -- Reassembly



1. INSTALL BRAKE ACTUATOR BOLT CUSHION


    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35.Brake Control.Anti-Lock Brake System.Abs And Traction Actuator (W/ Vsc) Reassembly

  1. Install the 4 brake actuator bolt cushions to the brake actuator bracket.



2. INSTALL BRAKE ACTUATOR CASE COLLAR

  1. Install the 4 brake actuator case collars to the brake actuator bolt cushions.

    NOTICE:
    Make sure the collars are in full contact with the cushions.


3. INSTALL BRAKE ACTUATOR BRACKET


    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35.Brake Control.Anti-Lock Brake System.Abs And Traction Actuator (W/ Vsc) Reassembly

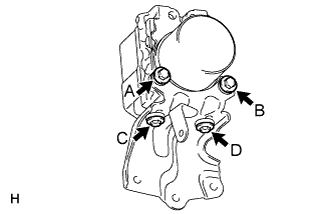

  1. Install the brake actuator bracket to the brake actuator with the 4 bolts.

    Torque:
    5.4 N*m{55 kgf*cm, 48 in.*lbf}
    NOTICE:
    Tighten the 4 bolts uniformly in alphabetical order.
