Brake Actuator (W/O Vsc) Reassembly

Brake. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35
Brake Control. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35

  1. INSTALL BRAKE ACTUATOR BOLT CUSHION

  2. INSTALL BRAKE ACTUATOR BOLT HOLDER

  3. INSTALL BRAKE ACTUATOR ASSEMBLY

Brake Actuator (W/O Vsc) -- Reassembly



1. INSTALL BRAKE ACTUATOR BOLT CUSHION

  1. Install the 3 cushions to the actuator.



2. INSTALL BRAKE ACTUATOR BOLT HOLDER

  1. Install the 2 bolt holders to the actuator.



3. INSTALL BRAKE ACTUATOR ASSEMBLY
NOTICE:
Do not remove the hole plug before connecting the brake tube. New actuators are filled with brake fluid.

  1. Set the actuator on the bracket.

    NOTICE:

    1. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35.Brake Control.Anti-Lock Brake System.Brake Actuator (W/O Vsc) Reassembly

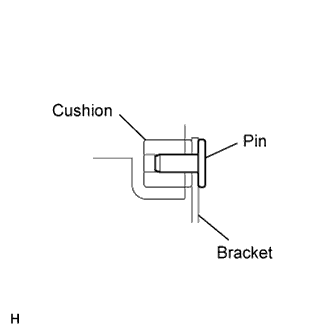

      Insert the cushion to the pin of the bracket securely.

    2. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35.Brake Control.Anti-Lock Brake System.Brake Actuator (W/O Vsc) Reassembly

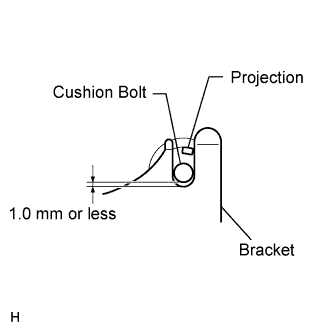

      The clearance between the cushion bolt and bracket is less than 1.0 mm (0.039 in.).
    3. The projection should be set as shown in the illustration.


    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35

  1. Install the 2 nuts to assemble the actuator and bracket.

    Torque:
    5.4 N*m{55 kgf*cm, 48 in.*lbf}
