AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System) - IG Power Source Circuit |
DESCRIPTION
This is the main power source supplied to the air conditioning amplifier when the ignition switch is on (IG). This power source is used for operating components, such as the air conditioning amplifier and servo motors.

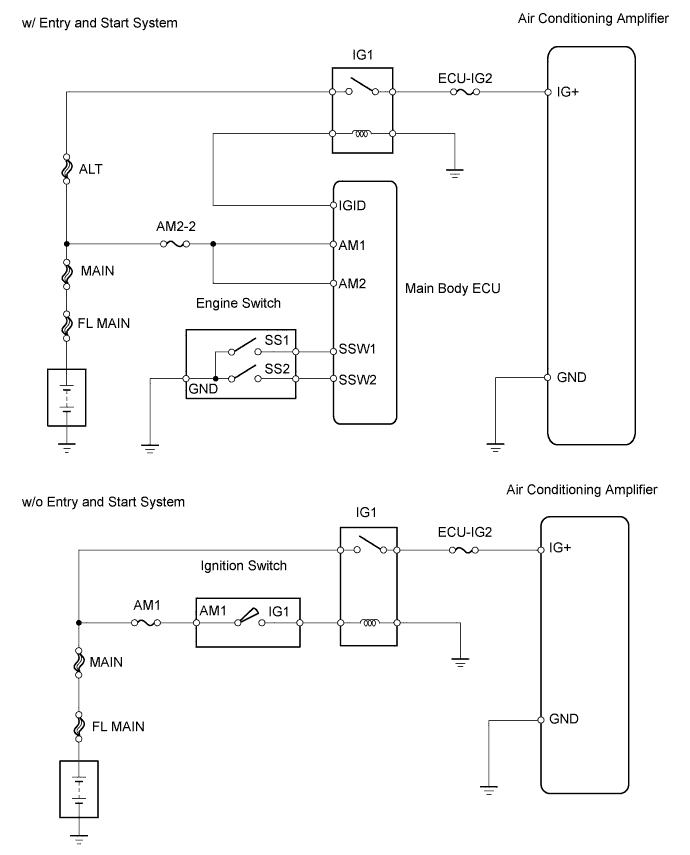

WIRING DIAGRAM
INSPECTION PROCEDURE
Remove the ECU-IG2 fuse from the instrument panel junction block.
Measure the resistance of the fuse.
- Standard resistance:
- Below 1 Ω

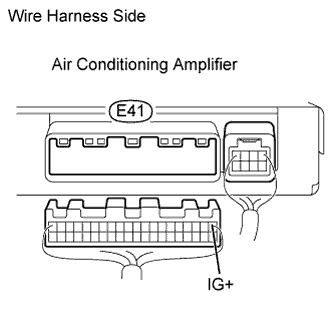

| 2.CHECK WIRE HARNESS (AIR CONDITIONING AMPLIFIER - BATTERY) |
Disconnect the E41 amplifier connector.
Measure the voltage of the wire harness side connector.
- Standard voltage:
Tester Connection
| Condition
| Specified Condition
|
E41-1 (IG+) - Body ground
| Ignition switch on (IG)
| 10 to 14 V
|
| | REPAIR OR REPLACE HARNESS AND CONNECTOR |
|
|

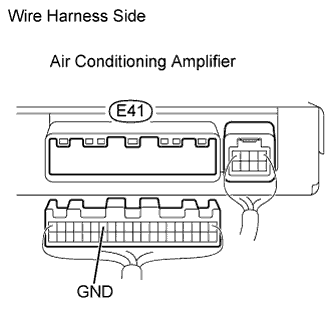

| 3.CHECK WIRE HARNESS (AIR CONDITIONING AMPLIFIER - BODY GROUND) |
Disconnect the E41 amplifier connector.
Measure the resistance of the wire harness side connector.
- Standard resistance:
Tester Connection
| Specified Condition
|
E41-14 (GND) - Body ground
| Below 1 Ω
|
| | REPAIR OR REPLACE HARNESS AND CONNECTOR |
|
|
| OK |
|
|
|
| PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE |
|
