Parking Brake Assembly Inspection

Brake. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35
Parking Brake. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35

  1. CHECK BRAKE DISC INSIDE DIAMETER

  2. CHECK PARKING BRAKE SHOE LINING THICKNESS

  3. CHECK BRAKE DISC AND PARKING BRAKE SHOE LINING FOR PROPER CONTACT

Parking Brake Assembly -- Inspection



1. CHECK BRAKE DISC INSIDE DIAMETER


    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35

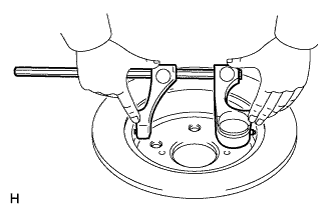

  1. Using a drum gauge or equivalent, measure the inside diameter of the disc.

    Standard inside diameter:
    173 mm (6.81 in.)
    Maximum inside diameter:
    174 mm (6.85 in.)
    If the inside diameter is greater than the maximum, replace the disc.


2. CHECK PARKING BRAKE SHOE LINING THICKNESS


    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35

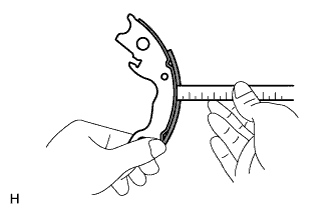

  1. Using a ruler, measure the shoe lining thickness.

    Standard thickness:
    3.5 mm (0.138 in.)
    Minimum thickness:
    1.0 mm (0.039 in.)
    If the shoe lining thickness is equal to or less than the minimum, replace the brake shoe assembly.


3. CHECK BRAKE DISC AND PARKING BRAKE SHOE LINING FOR PROPER CONTACT


    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35

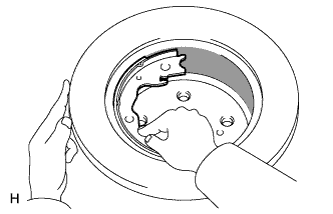

  1. Apply chalk to the inside surface of the disc. Touch the brake shoe to the disc and check that there is full contact between the brake shoe and disc (white chalk is transferred to the entire brake shoe).
    If the contact is not as specified, use a shoe grinder to repair the brake shoe, or replace the brake shoe assembly.
