Condenser Installation

Heater & Air Conditioning System. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35
Air Conditioning. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35

  1. INSTALL COOLER DRYER

  2. INSTALL COOLER CONDENSER ASSEMBLY

  3. INSTALL NO. 2 FAN SHROUD

  4. INSTALL UPPER RADIATOR SUPPORT

  5. INSTALL LIQUID PIPE SUB-ASSEMBLY

  6. INSTALL NO. 1 COOLER REFRIGERANT DISCHARGE HOSE

  7. ADJUST HOOD SUB-ASSEMBLY

  8. INSTALL FRONT BUMPER COVER

  9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

  10. CHARGE REFRIGERANT

  11. WARM UP ENGINE

  12. CHECK FOR LEAKAGE OF REFRIGERANT

Condenser -- Installation



1. INSTALL COOLER DRYER


    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35.Air Conditioning.Air Conditioning System (For Automatic Air Conditioning System).Condenser  Installation
  1. Using pliers, install the cooler dryer.



    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35.Air Conditioning.Air Conditioning System (For Automatic Air Conditioning System).Condenser  Installation
  1. Apply a sufficient amount of compressor oil to the contact surfaces of a new O-ring and the cap.

    Compressor oil:
    ND-OIL 8 or equivalent
  1. Install the O-ring to the cap.



    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35.Air Conditioning.Air Conditioning System (For Automatic Air Conditioning System).Condenser  Installation

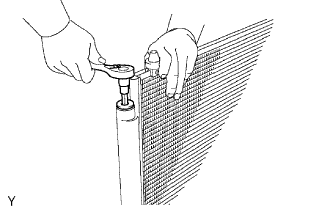

  1. Using a 14 mm socket hexagon wrench, install the cap to the modulator.

    Torque:
    2.9 N*m{29 kgf*cm, 25 in.*lbf}


2. INSTALL COOLER CONDENSER ASSEMBLY


    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35

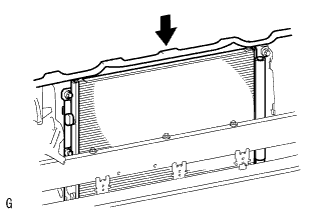

  1. Install the cooler condenser.



3. INSTALL NO. 2 FAN SHROUD


Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35
  1. Install the fan shroud with the 2 bolts.

    Torque:
    10.5 N*m{107 kgf*cm, 8 ft.*lbf}


4. INSTALL UPPER RADIATOR SUPPORT


Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35
  1. Install the 2 brackets with the 2 bolts.

    Torque:
    19 N*m{194 kgf*cm, 14 ft.*lbf}


5. INSTALL LIQUID PIPE SUB-ASSEMBLY


Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35
  1. Remove the attached vinyl tape from the pipe and the connecting part of the cooler condenser.

  1. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the pipe joint.

    Compressor oil:
    ND-OIL 8 or equivalent
  1. Install the O-ring on the liquid pipe sub-assembly.

  1. Install the liquid pipe sub-assembly on the cooler condenser with the bolt.

    Torque:
    9.8 N*m{100 kgf*cm, 7 ft.*lbf}


6. INSTALL NO. 1 COOLER REFRIGERANT DISCHARGE HOSE


Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35
  1. Remove the attached vinyl tape from the hose and the connecting part of the cooler condenser.

  1. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the hose joint.

    Compressor oil:
    ND-OIL 8 or equivalent
  1. Install the O-ring on the cooler refrigerant discharge hose.

  1. Install the cooler refrigerant discharge hose on the cooler condenser with the bolt.

    Torque:
    9.8 N*m{100 kgf*cm, 7 ft.*lbf}


7. ADJUST HOOD SUB-ASSEMBLY


Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35.Air Conditioning.Air Conditioning System (For Automatic Air Conditioning System).Condenser  Installation
  1. Install the hood with the 4 bolts.

    Torque:
    13 N*m{133 kgf*cm, 10 ft.*lbf}
  1. Adjust the hood position (RAV4_ACA30 RM00000138K00WX.html).



8. INSTALL FRONT BUMPER COVER
  1. w/ Under Guard:
    Install the front bumper cover (RAV4_ACA30 RM000003PKD001X.html).

  1. w/o Under Guard:
    Install the front bumper cover (RAV4_ACA30 RM0000015RH00GX.html).

  1. w/ Hood Moulding:
    Install the front bumper cover (RAV4_ACA30 RM0000015RH00PX.html).



9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL


10. CHARGE REFRIGERANT
  1. Perform vacuum purging using a vacuum pump.



  1. Charge refrigerant HFC-134a (R134a).

    Standard:
    430 +-30 g (15.2 +-1.1 oz.)
    SST
    09985-20010(09985-02130,09985-02150,09985-02090,09985-02110,09985-02010,09985-02050,09985-02060,09985-02070)


    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35.Air Conditioning.Air Conditioning System (For Automatic Air Conditioning System).Condenser  Installation

    NOTICE:
    1. Do not operate the cooler compressor before charging refrigerant as the cooler compressor will not work properly without any refrigerant, and will overheat.
    2. Approximately 100 g (3.53 oz.) of refrigerant may need to be charged after bubbles disappear. The refrigerant amount should be checked by measuring its quantity, and not with the sight glass.


11. WARM UP ENGINE
  1. Perform vacuum purging using a vacuum pump.



  1. Charge refrigerant HFC-134a (R134a).

    Standard:
    430 +-30 g (15.2 +-1.1 oz.)
    SST
    09985-20010(09985-02130,09985-02150,09985-02090,09985-02110,09985-02010,09985-02050,09985-02060,09985-02070)


    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35.Air Conditioning.Air Conditioning System (For Automatic Air Conditioning System).Condenser  Installation

    NOTICE:
    1. Do not operate the cooler compressor before charging refrigerant as the cooler compressor will not work properly without any refrigerant, and will overheat.
    2. Approximately 100 g (3.53 oz.) of refrigerant may need to be charged after bubbles disappear. The refrigerant amount should be checked by measuring its quantity, and not with the sight glass.


12. CHECK FOR LEAKAGE OF REFRIGERANT
  1. After recharging the refrigerant gas, check for refrigerant gas leakage using a halogen leak detector.

  1. Perform the operation under these conditions:

    1. Stop the engine.
    2. Secure good ventilation (the gas leak detector may react to volatile gases other than refrigerant, such as evaporated gasoline or exhaust gas).
    3. Repeat the test 2 or 3 times.
    4. Make sure that some refrigerant remains in the refrigeration system. When compressor is off: approximately 392 to 588 kPa (4 to 6 kgf/cm2, 57 to 85 psi)


    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35.Air Conditioning.Air Conditioning System (For Automatic Air Conditioning System).Condenser  Installation
  1. Using a gas leak detector, check the refrigerant line for leakage.

  1. If a gas leak is not detected on the drain hose, remove the blower motor control (blower resistor) from the cooling unit. Insert the gas leak detector sensor into the unit and perform the test.

  1. Disconnect the connector and leave the pressure switch on for approximately 20 minutes. Bring the gas leak detector close to the pressure switch and perform the test.
