Front Passenger Airbag Assembly On-Vehicle Inspection

Restraints. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35
Supplemental Restraint System. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35

  1. CHECK FRONT PASSENGER AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION AND AIRBAG NOT DEPLOYED)

  2. CHECK FRONT PASSENGER AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG NOT DEPLOYED)

Front Passenger Airbag Assembly -- On-Vehicle Inspection



1. CHECK FRONT PASSENGER AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION AND AIRBAG NOT DEPLOYED)


    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35
  1. Perform a diagnostic system check (RAV4_ACA30 RM000000XFE06SX.html).

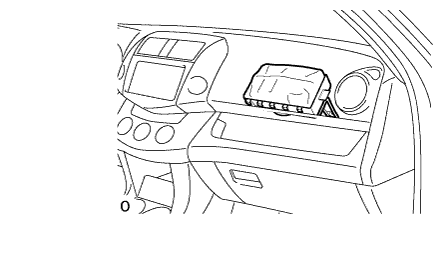

  1. With the front passenger airbag installed on the vehicle, perform a visual check:
    Check for cuts, cracks or discoloration on the front passenger airbag surface and in the grooved portion.

    1. If any of the defects mentioned above are present, replace the front passenger airbag with a new one.
    CAUTION:
    For removal and installation of the front passenger airbag, be sure to follow the correct procedures.


2. CHECK FRONT PASSENGER AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG NOT DEPLOYED)


    Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35
  1. Perform a diagnostic system check (RAV4_ACA30 RM000000XFE06SX.html).

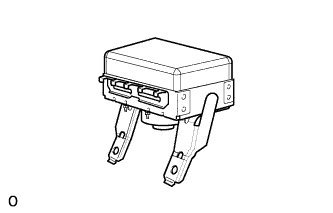

  1. With the front passenger airbag removed from the vehicle, perform a visual check:

    1. Check for cuts, cracks or discoloration on the front passenger airbag.
    2. Check for cracks or other damage on the connectors.

    3. Toyota Rav4. Aca30, 33, 38 Gsa33 Zsa30, 35

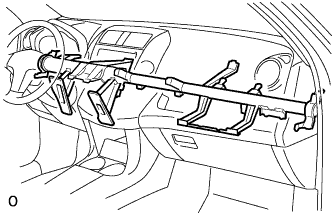

      Check for deformation or cracks on the instrument panel and instrument panel reinforcement.
    1. If any of the defects mentioned above are present, replace the front passenger airbag with a new one.
    CAUTION:
    For removal and installation of the front passenger airbag, be sure to follow the correct procedures.
