VEHICLE STABILITY CONTROL SYSTEM - Downhill Assist Control Indicator Light Remains ON |
DESCRIPTION
When the downhill assist control switch is pushed on, the downhill assist control function is available and the downhill assist control indicator light illuminates.- HINT:
- Even if the downhill assist control switch is pressed, the downhill assist control indicator light will blink and downhill assist control will not be activated under the following conditions:
- Gear position is not L or R.
- The system is malfunctioning.
- The vehicle speed is 25 km/h (15 mph) or more.

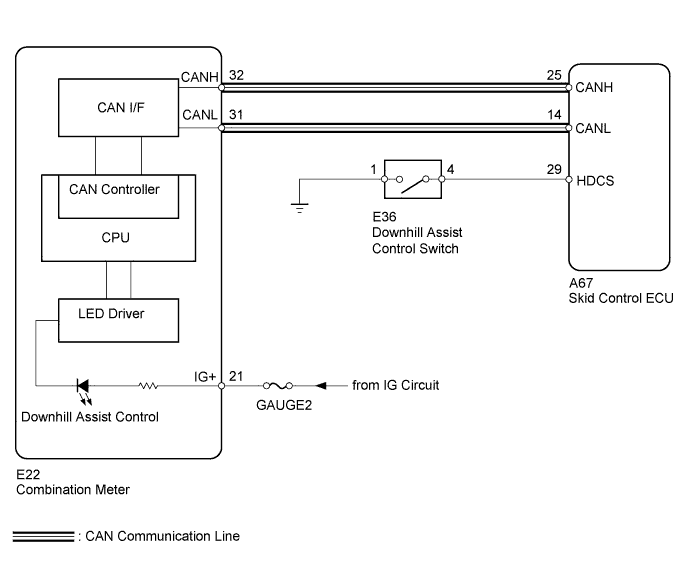

WIRING DIAGRAM
INSPECTION PROCEDURE
- NOTICE:
- When replacing the brake actuator assembly, perform zero point calibration (RAV4_ACA30 RM000001K1O00SX.html).
| 1.CHECK CAN COMMUNICATION SYSTEM |
Check if a CAN communication system DTC is output (RAV4_ACA30 RM000001W16002X.html).
- Result:
Result
| Proceed to
|
DTC is not output.
| A
|
DTC is output.
| B
|
| 2.CHECK SKID CONTROL ECU CONNECTOR |
Check if the skid control ECU connector is securely connected.
- OK:
- The connector is securely connected.
| | CONNECT CONNECTOR CORRECTLY |
|
|
| 3.CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - BODY GROUND) |
Disconnect the skid control ECU connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Switch Condition
| Specified Condition
|
A67-29 (HDCS) - Body ground
| Downhill assist control switch is pushed
| Below 1 Ω
|
Downhill assist control switch is not pushed
| 10 kΩ or higher
|
| 4.INSPECT DOWNHILL ASSIST CONTROL SWITCH |
Remove the downhill assist control switch (RAV4_ACA30 RM000002101009X.html).
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Switch Condition
| Specified Condition
|
1 - 4
| Switch is pushed
| Below 1 Ω
|
Switch is not pushed
| 10 kΩ or higher
|
| | REPLACE DOWNHILL ASSIST CONTROL SWITCH |
|
|
| 5.CHECK HARNESS AND CONNECTOR (DOWNHILL ASSIST CONTROL SW - SKID CONTROL ECU/BODY GROUND) |

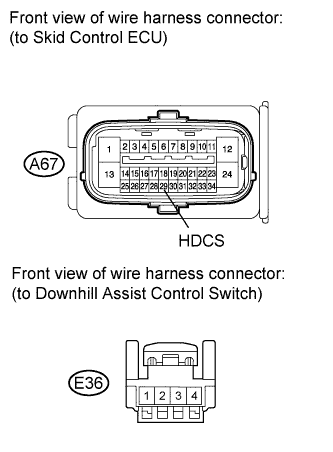

Disconnect the skid control ECU connector.
Disconnect the downhill assist control switch connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Condition
| Specified Condition
|
A67-29 (HDCS) - E36-4
| Always
| Below 1 Ω
|
A67-29 (HDCS) - Body ground
| Always
| 10 kΩ or higher
|
E36-1 - Body ground
| Always
| Below 1 Ω
|
| | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
| 6.INSPECT COMBINATION METER ASSEMBLY |
Inspect the combination meter (RAV4_ACA30 RM0000020M0001X.html).
