Heater Exhaust Pipe (For 2Ad-Fhv) Removal

Heater & Air Conditioning System. Lexus Is250, Is220D. Gse20 Ale20
Heater. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE MANUAL TRANSMISSION

  2. REMOVE AIR DUCT

  3. REMOVE HEATER ASSEMBLY

  4. REMOVE HEATER EXHAUST PIPE

  5. REMOVE HEATER BRACKET SUB-ASSEMBLY

Heater Exhaust Pipe (For 2Ad-Fhv) -- Removal



1. REMOVE MANUAL TRANSMISSION
HINT:
Refer to the instructions for removal of the manual transmission (RA63) (Click here)


2. REMOVE AIR DUCT


    Lexus Is250, Is220D. Gse20 Ale20.Heater.Combustion Type Power Heater System.Heater Exhaust Pipe (For 2Ad-Fhv) Removal

  1. Remove the clip, clamp, and air duct.



3. REMOVE HEATER ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Heater.Combustion Type Power Heater System.Heater Exhaust Pipe (For 2Ad-Fhv) Removal

  1. Using pliers, grip the claws of the clip and slide the clip to disconnect the heater water inlet hose.



    Lexus Is250, Is220D. Gse20 Ale20.Heater.Combustion Type Power Heater System.Heater Exhaust Pipe (For 2Ad-Fhv) Removal

  1. Using pliers, grip the claws of the clip and slide the clip to disconnect the heater water outlet hose.



    Lexus Is250, Is220D. Gse20 Ale20.Heater.Combustion Type Power Heater System.Heater Exhaust Pipe (For 2Ad-Fhv) Removal

  1. Using pliers, grip the claws of the clip and slide the clip to disconnect the fuel hose.

  1. Disconnect the connector.



    Lexus Is250, Is220D. Gse20 Ale20.Heater.Combustion Type Power Heater System.Heater Exhaust Pipe (For 2Ad-Fhv) Removal

  1. Remove the 4 bolts and heater assembly.



4. REMOVE HEATER EXHAUST PIPE


    Lexus Is250, Is220D. Gse20 Ale20

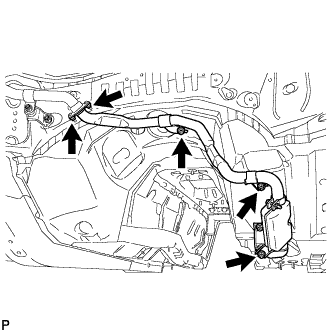

  1. Remove the 2 bolts, 3 nuts, and heater exhaust pipe.



5. REMOVE HEATER BRACKET SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

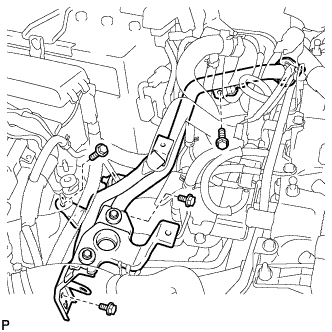

  1. Remove the 4 bolts and heater bracket sub-assembly.
