Heater Assembly (For 2Ad-Fhv) Installation

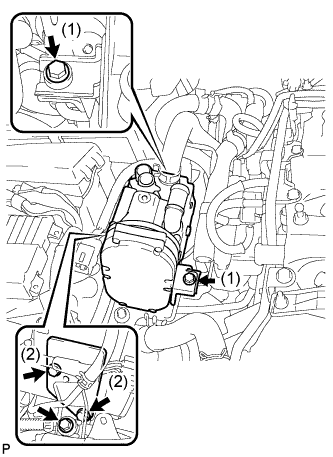

Install the heater assembly with the 4 bolts.

Torque:

Bolt 1:

9.8 N*m{100 kgf*cm, 7 ft.*lbf}

Bolt 2:

5.4 N*m{55 kgf*cm, 48 in.*lbf}

Install the fuel hose and attach the clip.

Install the heater water outlet hose and attach the clip.

Install the heater water inlet hose and attach the clip.

Install the air duct with the clip and clamp.
