Injector Driver Installation

Engine. Lexus Is250, Is220D. Gse20 Ale20
2Ad-Fhv Fuel. Lexus Is250, Is220D. Gse20 Ale20

  1. INSTALL INJECTOR DRIVER

  2. INSTALL AIR DUCT (with Combustion Type Power Heater)

  3. INSTALL ENGINE ROOM SIDE COVER RH

  4. INSTALL COOL AIR INTAKE DUCT SEAL

  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

  6. PERFORM INITIALIZATION

Injector Driver -- Installation



1. INSTALL INJECTOR DRIVER


    Lexus Is250, Is220D. Gse20 Ale20.2Ad-Fhv Fuel.Fuel System.Injector Driver Installation

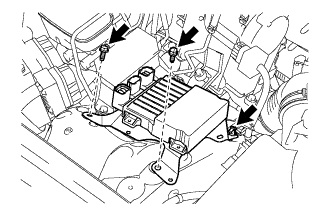

  1. Install the injector driver with the clip and 2 bolts.

    Torque:
    8.0 N*m{82 kgf*cm, 71 in.*lbf}


    Lexus Is250, Is220D. Gse20 Ale20.2Ad-Fhv Fuel.Fuel System.Injector Driver Installation

  1. Connect the 2 wire harness clamps and 3 injector connectors.



2. INSTALL AIR DUCT (with Combustion Type Power Heater)


    Lexus Is250, Is220D. Gse20 Ale20.2Ad-Fhv Fuel.Fuel System.Injector Driver Installation

  1. Install the air duct with the clip and clamp.



3. INSTALL ENGINE ROOM SIDE COVER RH


    Lexus Is250, Is220D. Gse20 Ale20

  1. Install the side cover with the 2 clips.



4. INSTALL COOL AIR INTAKE DUCT SEAL


    Lexus Is250, Is220D. Gse20 Ale20

  1. Install the intake duct seal with the 11 clips.



5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL


6. PERFORM INITIALIZATION

  1. Perform initialization procedure (Click here).

    HINT:
    Some vehicle systems require initialization after reconnecting the negative battery terminal.
