Fuel Filter -- Replacement |
- HINT:
- When replacing the filter, use TOYOTA genuine parts or equivalent parts.
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL |

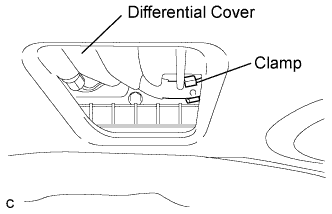

2. REMOVE NO. 2 DIFFERENTIAL SUPPORT PROTECTOR |
Remove the 2 nuts and No. 2 differential support protector from the suspension member brace.
![]() |
3. REMOVE NO. 1 DIFFERENTIAL SUPPORT PROTECTOR |
- HINT:
- Removal procedure of the No. 1 differential support protector is the same as that of the No. 2 differential support protector.
4. REMOVE REAR SUSPENSION MEMBER BRACE LH |
Remove the 2 bolts and rear suspension member brace LH.
![]() |
5. REMOVE REAR SUSPENSION MEMBER BRACE RH |
- HINT:
- Removal procedure of the RH side is the same as that of the LH side.
6. SEPARATE FUEL SEDIMENTER ASSEMBLY |
Remove the 3 bolts and disconnect the fuel sedimenter connector.
![]() |
Separate the fuel sedimenter assembly from the fuel sedimenter support.
Loosen the upper drain bolt.
- NOTICE:
- Do not tilt the fuel sedimenter excessively.
![]() |

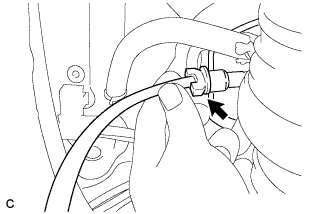

Install a suitable vinyl tube onto the lower drain bolt.
![]() |
Loosen the drain bolt, and drain the fuel from the fuel sedimenter, then drain the fuel into a container.
7. LOOSEN FUEL TANK CAP ASSEMBLY |
8. SEPARATE FUEL ROUTE SWITCHING VALVE ASSEMBLY |

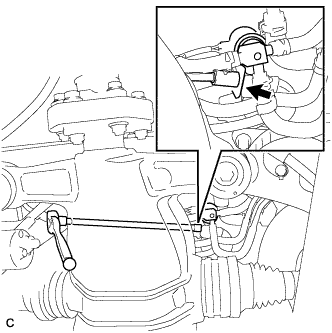

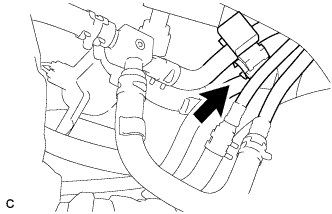

Separate the fuel hose from the fuel tube clamp.
![]() |
Remove the bolt and separate the fuel route switching valve.
![]() |
Separate the 3 fuel hoses from the No. 2 fuel tube clamp.
![]() |
9. REMOVE FUEL FILTER ASSEMBLY |

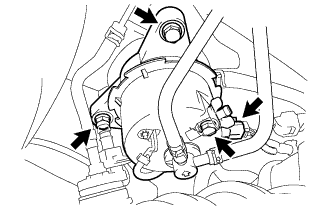

Disconnect the 2 fuel hoses and remove the 3 bolts.
- NOTICE:
- Plug the filter and hoses immediately after disconnecting the hoses.
![]() |
Remove the fuel filter assembly.
- HINT:

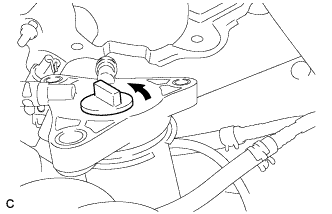

- Turn the filter clockwise to find a position that allows it to be removed.
![]() |
10. REMOVE FUEL FILTER ELEMENT |

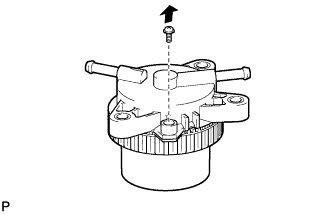

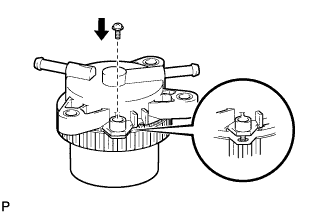

Remove the screw.
![]() |

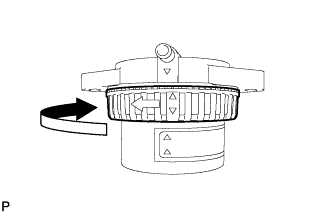

Loosen the fastener nut until it can be loosened by hand.
- NOTICE:
- Be careful not to damage the fuel filter.
![]() |
Fully loosen the fastener nut by hand.

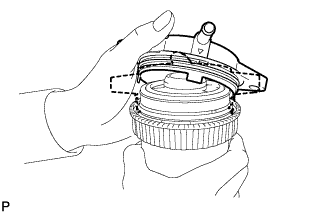

To remove the cap, pull up one side of the cap and then lift it off.
- NOTICE:
- Be careful not to damage the fuel filter.
![]() |
11. INSTALL FUEL FILTER ELEMENT |

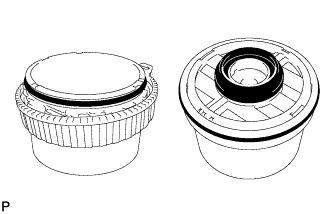

Attach 2 new O-rings to a new element and a new O-ring to the case.
![]() |
Install the element to the case.

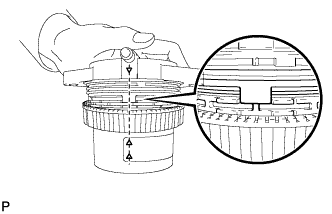

Align the marks on the cap and the case.
- NOTICE:
- Be careful not to damage the fuel filter.
![]() |

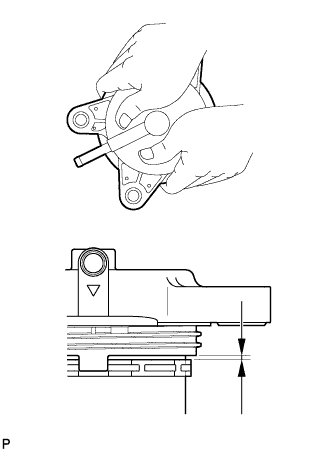

Push the cap into the case by hand.
- Clearance (A):
- 1.5 mm (0.059 in.) or less
- HINT:
- The clearance between the cap and case should be even around the entire circumference of the cap and case.
![]() |

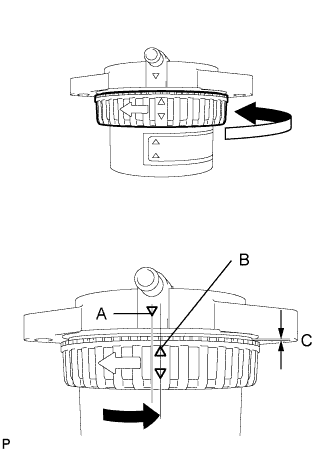

Tighten the fastener nut as shown in the illustration.
- HINT:
- Make sure that the fastener nut is tightened until mark B (on the fastener nut) goes beyond mark A (on the case) and that dimension C (clearance between the case and fastener nut) is 2 mm (0.079in.) or less.
![]() |
Install the screw to the cap.
![]() |
12. INSTALL FUEL FILTER ASSEMBLY |
Install the fuel filter assembly with the 3 bolts.
- Torque:
- 29 N*m{296 kgf*cm, 21 ft.*lbf}
![]() |
Connect the 2 fuel hoses with the clips.
13. INSTALL FUEL ROUTE SWITCHING VALVE ASSEMBLY |
Install the 3 fuel hoses to the No. 2 fuel tube clamp.
![]() |
Install the fuel route switching valve with the bolt.
- Torque:
- 15 N*m{153 kgf*cm, 11 ft.*lbf}
![]() |
Install the fuel hose to the clamp.
![]() |
14. TIGHTEN FUEL TANK CAP ASSEMBLY |
15. INSTALL FUEL SEDIMENTER ASSEMBLY |
Tighten the 2 drain bolts.
Install the fuel sedimenter assembly to the fuel sedimenter support with the 3 bolts.
- Torque:
- 29 N*m{296 kgf*cm, 21 ft.*lbf}
![]() |
Connect the fuel sedimenter connector.
16. INSTALL REAR SUSPENSION MEMBER BRACE LH |
Install the rear suspension member brace LH with the 2 bolts.
- Torque:
- 50 N*m{510 kgf*cm, 37 ft.*lbf}
![]() |
17. INSTALL REAR SUSPENSION MEMBER BRACE RH |
- HINT:
- Installation procedure of the RH side is the same as that of the LH side.
18. INSTALL NO. 2 DIFFERENTIAL SUPPORT PROTECTOR |
Install the No. 2 differential support protector to the rear suspension member brace with the 2 nuts.
- Torque:
- 5.4 N*m{55 kgf*cm, 48 in.*lbf}
![]() |
19. REMOVE NO. 1 DIFFERENTIAL SUPPORT PROTECTOR |
- HINT:
- Installation procedure of the No. 1 differential support protector is the same as that of the No. 2 differential support protector.
20. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL |
21. PERFORM INITIALIZATION |
Perform initialization procedure (Click here).
- HINT:
- Some vehicle systems require initialization after reconnecting the negative battery terminal.
