Brake. Lexus Is250, Is220D. Gse20 Ale20
Brake Control. Lexus Is250, Is220D. Gse20 Ale20
Skid Control Ecu (W/ Vdim) -- Removal |

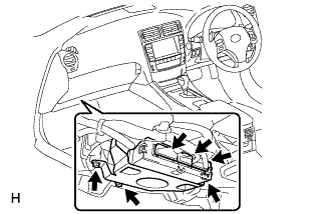

1. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
Using a moulding remover, disengage the 4 clips and remove the No. 2 instrument panel under cover sub-assembly.
![]() |

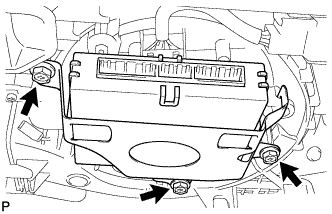

2. REMOVE SKID CONTROL ECU ASSEMBLY (for LHD) |
Disconnect the 3 connectors from the skid control ECU.
![]() |
Remove the 3 screws and skid control ECU.
![]() |

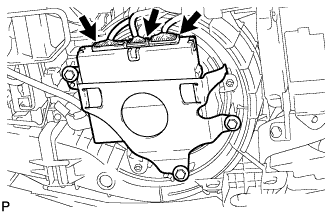

3. REMOVE SKID CONTROL ECU ASSEMBLY (for RHD) |
Disconnect the 3 connectors from the skid control ECU.
![]() |
Remove the 3 screws and skid control ECU.
