Skid Control Ecu (W/ Vdim) Installation

Brake. Lexus Is250, Is220D. Gse20 Ale20
Brake Control. Lexus Is250, Is220D. Gse20 Ale20

  1. INSTALL SKID CONTROL ECU ASSEMBLY (for LHD)

  2. INSTALL SKID CONTROL ECU ASSEMBLY (for RHD)

  3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

  4. CHECK AND CLEAR DTC

Skid Control Ecu (W/ Vdim) -- Installation



1. INSTALL SKID CONTROL ECU ASSEMBLY (for LHD)


    Lexus Is250, Is220D. Gse20 Ale20.Brake Control.Vehicle Stability Control System (W/ Vdim).Skid Control Ecu (W/ Vdim) Installation

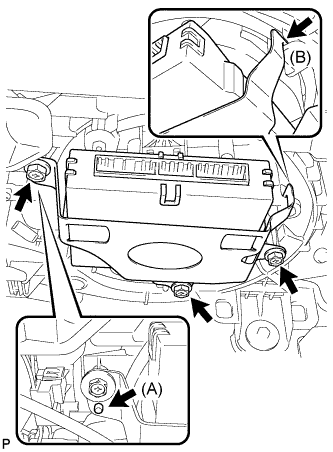

  1. Install the skid control ECU with the 3 screws.

    Torque:
    5.5 N*m{56 kgf*cm, 49 in.*lbf}
    HINT:
    1. Align the positioning boss (A) of the blower assembly with the hole of the skid control ECU.
    2. Securely engage the hook (B) of the skid control ECU with the blower assembly.


    Lexus Is250, Is220D. Gse20 Ale20

  1. Connect the 3 connectors to the skid control ECU.



2. INSTALL SKID CONTROL ECU ASSEMBLY (for RHD)


    Lexus Is250, Is220D. Gse20 Ale20

  1. Install the skid control ECU with the 3 screws.

    Torque:
    5.5 N*m{56 kgf*cm, 49 in.*lbf}
    HINT:
    1. Align the positioning boss of the blower assembly with the hole of the skid control ECU.
    2. Securely engage the hook of the skid control ECU with the blower assembly.

  1. Connect the 3 connectors to the skid control ECU.



3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the 4 clips and install the No. 2 instrument panel under cover sub-assembly.



4. CHECK AND CLEAR DTC
HINT:
(Click here)
