  1. REMOVE COOL AIR INTAKE DUCT SEAL

  2. REMOVE ENGINE ROOM SIDE COVER LH

  3. REMOVE ECM

  4. DISCONNECT ECM CONNECTOR

Ecm -- Removal



1. REMOVE COOL AIR INTAKE DUCT SEAL


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 11 clips and intake duct seal.



2. REMOVE ENGINE ROOM SIDE COVER LH


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 4 clips and side cover.



3. REMOVE ECM


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 2 bolts and nut.

  1. Remove the ECM with bracket.



4. DISCONNECT ECM CONNECTOR


  1. Disconnect the 2 ECM connectors.



      Lexus Is250, Is220D. Gse20 Ale20.2Ad-Fhv Engine Control System.Ecd System.Ecm Removal

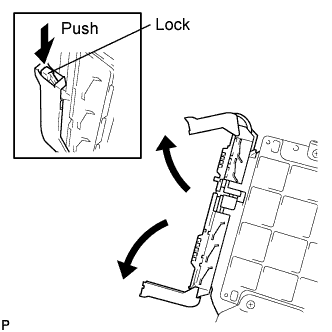

    1. Raise the 2 levers while pushing the locks on the 2 levers, and disconnect the 2 ECM connectors.

      NOTICE:
      After disconnecting the connector, make sure that dirt, water and other foreign matter do not contact the connecting part of the connector.
