Dtc B2288 Steering Lock Signal Circuit Malfunction
Engine. Lexus Is250, Is220D. Gse20 Ale20
DESCRIPTION
WIRING DIAGRAM
INSPECTION PROCEDURE
CHECK FOR DTCS
CHECK CONNECTORS
CHECK WIRE HARNESS (POWER SOURCE CONTROL ECU - BODY GROUND)
CHECK WIRE HARNESS (POWER SOURCE CONTROL ECU - STEERING LOCK ECU)
INSPECT POWER SOURCE CONTROL ECU
INSPECT STEERING LOCK ECU
RECHECK FOR DTC
DTC B2288 Steering Lock Signal Circuit Malfunction |
DESCRIPTION
This DTC is output when the power source control ECU cannot detect the unlock condition of the steering lock within a specified time.- HINT:
- When the power source control ECU is replaced with a new one and the negative (-) battery terminal is connected, the power source mode becomes the IG-ON mode. When the battery is removed and reinstalled, the power source mode that was selected when the battery was removed is restored.
DTC No.
| DTC Detection Condition
| Trouble Area
|
B2288
| After turning engine switch from off to on (IG), the steering wheel does not unlock for a certain period of time (ECU unlocks steering wheel only when it receives an unlock signal from LIN communication and cable)
| - Power source control ECU
- Steering lock ECU
- Wire harness or connector
|

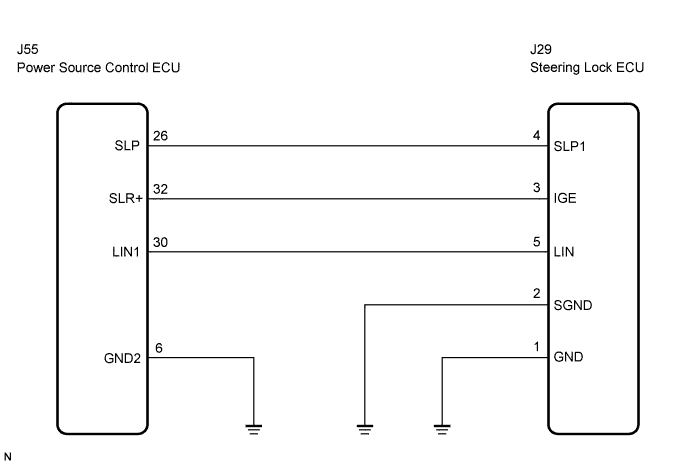

WIRING DIAGRAM
INSPECTION PROCEDURE
Delete the DTC (Click here).
Check for DTCs again.
- OK:
- DTC B2785, DTC B2287 and DTC B2781 are not output.
- HINT:
- If DTC B2785 is output (Click here).
- If DTC B2287 is output (Click here).
- If DTC B2781 is output (Click here).
Check that the connectors are securely connected and the terminals are not deformed or loose.
- OK:
- The connectors are securely connected and the terminals are not deformed or loose.
| REPAIR OR REPLACE CONNECTORS |
|
|
3.CHECK WIRE HARNESS (POWER SOURCE CONTROL ECU - BODY GROUND) |

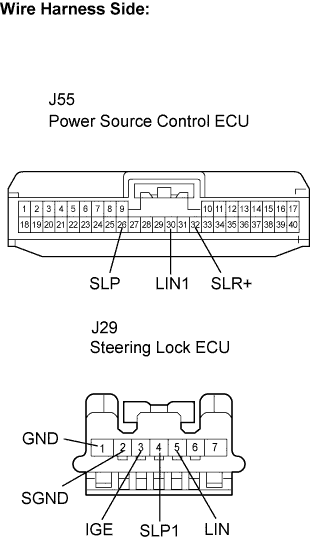

Disconnect the J55 ECU connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection (Symbols)
| Condition
| Specified Condition
|
J55-6 (GND2) - Body ground
| Always
| Below 1 Ω
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
4.CHECK WIRE HARNESS (POWER SOURCE CONTROL ECU - STEERING LOCK ECU) |
Disconnect the J29 ECU connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|
J55-26 (SLP) - J29-4 (SLP1)
| Always
| Below 1 Ω
|
J55-32 (SLR+) - J29-3 (IGE)
| Always
| Below 1 Ω
|
J55-30 (LIN1) - J29-5 (LIN)
| Always
| Below 1 Ω
|
J29-2 (SGND) - Body ground
| Always
| Below 1 Ω
|
J29-1 (GND) - Body ground
| Always
| Below 1 Ω
|
J55-26 (SLP) or J29-4 (SLP1) - Body ground
| Always
| 10 kΩ or higher
|
J55-32 (SLR+) or J29-3 (IGE) - Body ground
| Always
| 10 kΩ or higher
|
J55-30 (LIN1) or J29-5 (LIN) - Body ground
| Always
| 10 kΩ or higher
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
5.INSPECT POWER SOURCE CONTROL ECU |
Reconnect the J55 ECU connector.
Connect the oscilloscope to the power source control ECU terminals specified in the table below and check the waveform.
Item
| Contents
|
Terminal (Symbols)
| J55-26 (SLP) - Body ground
|
Equipment Setting
| 2 V/DIV., 100 ms./DIV.
|
Condition
| Engine switch on (IG)
|
- OK:
- The waveform appears as shown in the illustration.
| REPLACE POWER SOURCE CONTROL ECU |
|
|
6.INSPECT STEERING LOCK ECU |
Reconnect the J29 ECU connector.
Connect the oscilloscope to the power source control ECU terminals specified in the table below and check the waveform.
Item
| Contents
|
Terminal (Symbols)
| J55-26 (SLP) - Body ground
|
Equipment Setting
| 2 V/DIV., 100 ms./DIV.
|
Condition
| Steering is LOCK / UNLOCK
|
- OK:
- The waveform appears as shown in the illustration.
| REPLACE STEERING LOCK ECU |
|
|
Delete the DTCs (Click here).
After DTCs are all cleared, check if the trouble occurs again 30 seconds after the engine switch is turned on (IG) and brake (A/T) or clutch (M/T) pedal depressed.
- OK:
- DTC B2288 is not output.
| REPLACE POWER SOURCE CONTROL ECU |
|
|
OK |
|
|
|
REPLACE STEERING LOCK ECU |
|
