Back Door Courtesy Switch Inspection

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Lighting. Lexus Is250, Is220D. Gse20 Ale20

  1. INSPECT BACK DOOR COURTESY SWITCH

Back Door Courtesy Switch -- Inspection



1. INSPECT BACK DOOR COURTESY SWITCH


    Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.Back Door Courtesy Switch Inspection

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Switch Condition
    		Specified Condition

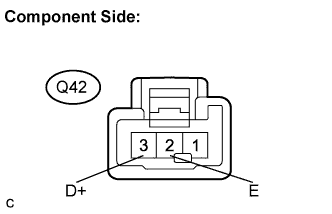

    Q42-3 (D+) - Q42-2 (E)
    		Door LOCK position
    		10 kΩ or higher
    Q42-3 (D+) - Q42-2 (E)
    		Door UNLOCK position
    		Below 1 Ω
    If the result is not as specified, replace the switch.
