  1. INSPECT REAR DOOR COURTESY SWITCH

Rear Door Courtesy Switch -- Inspection



1. INSPECT REAR DOOR COURTESY SWITCH


    Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.Rear Door Courtesy Switch Inspection

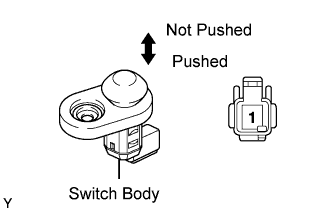

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Switch Condition
    		Specified Condition
    1 - Switch body
    		Pushed
    		10 kΩ or higher
    1 - Switch body
    		Not pushed
    		Below 1 Ω
    If the result is not as specified, replace the switch.
