Door Courtesy Light Inspection

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Lighting. Lexus Is250, Is220D. Gse20 Ale20

  1. INSPECT DOOR COURTESY LIGHT

Door Courtesy Light -- Inspection



1. INSPECT DOOR COURTESY LIGHT


    Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.Door Courtesy Light Inspection

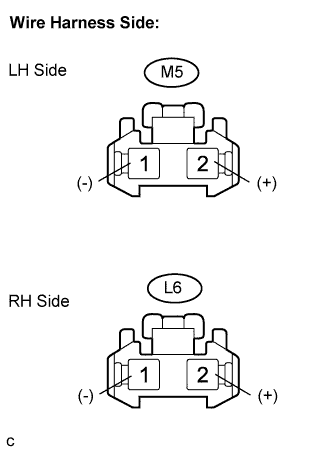

  1. Disconnect the connector from the door courtesy light.

  1. Measure the voltage according to the value(s) in the table below.

    Standard voltage:
    LH Side:
    Tester Connection
    		Condition
    		Specified Condition
    M5-2 (+) - M5-1 (-)
    		Any door is opened
    		10 to 14 V
    M5-2 (+) - M5-1 (-)
    		All doors are closed
    		Below 1 V
    RH Side:
    Tester Connection
    		Condition
    		Specified Condition
    L6-2 (+) - L6-1 (-)
    		Any door is opened
    		10 to 14 V
    L6-2 (+) - L6-1 (-)
    		All doors are closed
    		Below 1 V
    If the result is not as specified, repair or replace the wire harness or connector.


    Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.Door Courtesy Light Inspection

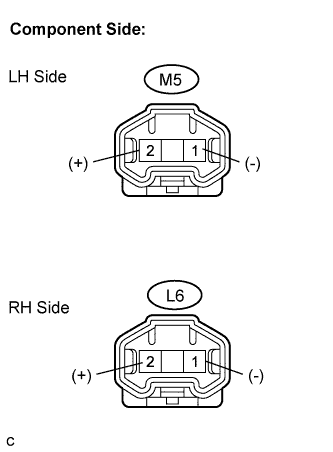

  1. Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 1.

  1. Check that the door courtesy light comes on.

    OK:
    Comes on
    If the result is not as specified, replace the door courtesy light.
