  1. INSPECT LICENSE PLATE LIGHT ASSEMBLY

License Plate Light Assembly -- On-Vehicle Inspection



1. INSPECT LICENSE PLATE LIGHT ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.License Plate Light Assembly On-Vehicle Inspection

  1. Disconnect the connector from the license plate light.

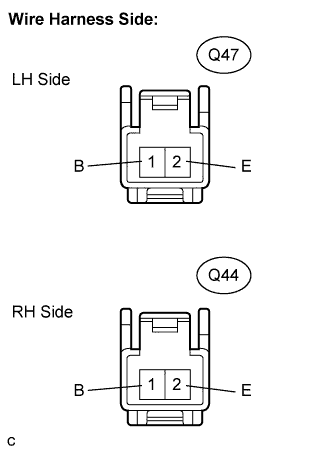

  1. Measure the voltage according to the value(s) in the table below.

    Standard voltage:
    LH Side:
    Tester Connection
    		Condition
    		Specified Condition
    Q47-1 (B) - Q47-2 (E)
    		Dimmer switch ON
    		10 to 14 V
    Q47-1 (B) - Q47-2 (E)
    		Dimmer switch OFF
    		Below 1 V
    RH Side:
    Tester Connection
    		Condition
    		Specified Condition
    Q44-1 (B) - Q44-2 (E)
    		Dimmer switch ON
    		10 to 14 V
    Q44-1 (B) - Q44-2 (E)
    		Dimmer switch OFF
    		Below 1 V
    If the result is not as specified, repair or replace the wire harness or connector.
