AUDIO AND VISUAL SYSTEM - Integration Control and Panel Assembly Power Source Circuit |
DESCRIPTION
This is the power source circuit to operate the integration control & panel assembly.

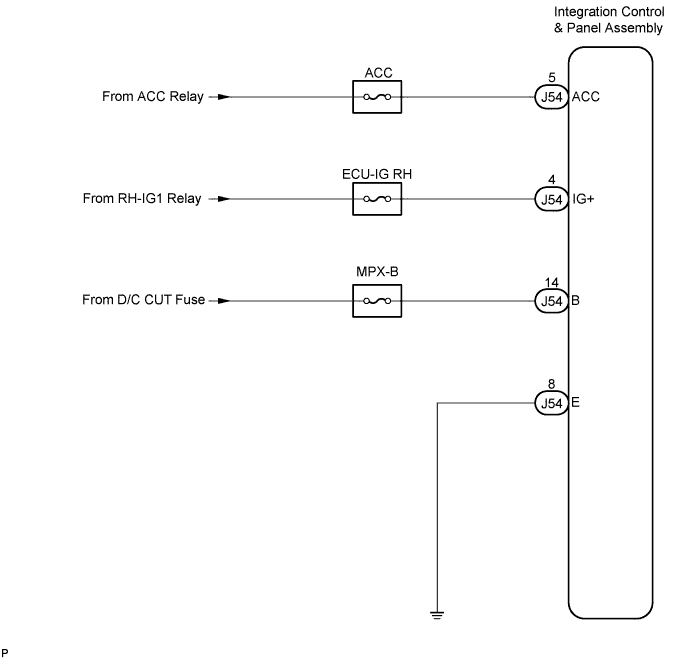

WIRING DIAGRAM
INSPECTION PROCEDURE
1.INSPECT INTEGRATION CONTROL & PANEL ASSEMBLY |
Disconnect the integration control & panel assembly connector J54.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester connection
| Condition
| Specified condition
|
E - Body ground
| Always
| Below 1 Ω
|
Measure the voltage according to the value(s) in the table below.
- Standard voltage:
Tester connection
| Condition
| Specified condition
|
B - GND
| Always
| 10 to 14 V
|
ACC - GND
| Engine SW on (ACC)
| 10 to 14 V
|
IG+ - GND
| Engine SW on (IG)
| 10 to 14 V
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
OK |
|
|
|
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE |
|
