Differential Mount Cushion Removal

Drive Line. Lexus Is250, Is220D. Gse20 Ale20
Differential. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY

  2. REMOVE NO. 1 REAR DIFFERENTIAL MOUNT CUSHION

  3. REMOVE NO. 2 REAR DIFFERENTIAL MOUNT CUSHION

Differential Mount Cushion -- Removal



1. REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY
(Click here)

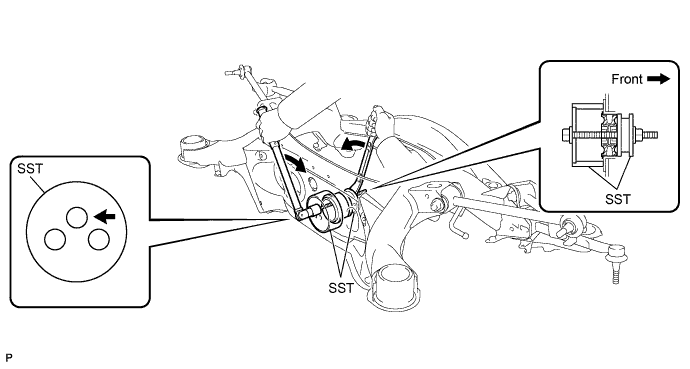

2. REMOVE NO. 1 REAR DIFFERENTIAL MOUNT CUSHION


  1. Using SST, remove the No. 1 rear differential mount cushion.


    Lexus Is250, Is220D. Gse20 Ale20.Differential.Differential System.Differential Mount Cushion Removal

    SST
    09570-24011
    09316-12010
    NOTICE:
    1. Do not bring SST into contact with the sub-frame.
    2. Do not slant the bolts of SST.
    3. Set the SST in the correct direction.
    4. Screw the 2 bolts of SST equally into the 2 holes of the rear differential mount.

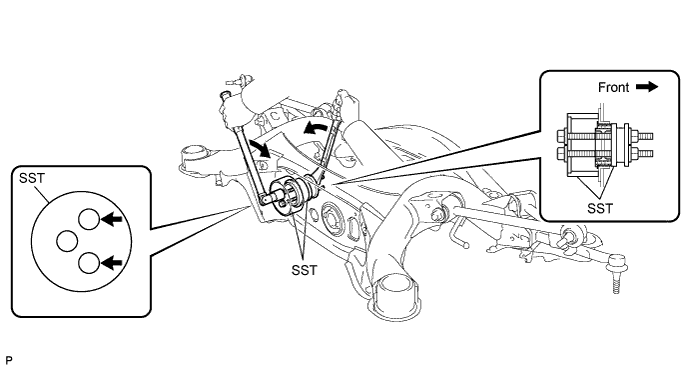

3. REMOVE NO. 2 REAR DIFFERENTIAL MOUNT CUSHION


  1. Using SST, remove the No. 2 rear differential mount cushion.


    Lexus Is250, Is220D. Gse20 Ale20.Differential.Differential System.Differential Mount Cushion Removal

    SST
    09570-24011
    09316-12010
    NOTICE:
    1. Do not bring SST into contact with the sub-frame.
    2. Do not slant the bolt of SST.
    3. Set the SST in the correct direction.
