  1. INSTALL NO. 1 REAR DIFFERENTIAL MOUNT CUSHION

  2. INSTALL NO. 2 REAR DIFFERENTIAL MOUNT CUSHION

  3. INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY

Differential Mount Cushion (For 2Ad-Fhv) -- Installation



1. INSTALL NO. 1 REAR DIFFERENTIAL MOUNT CUSHION

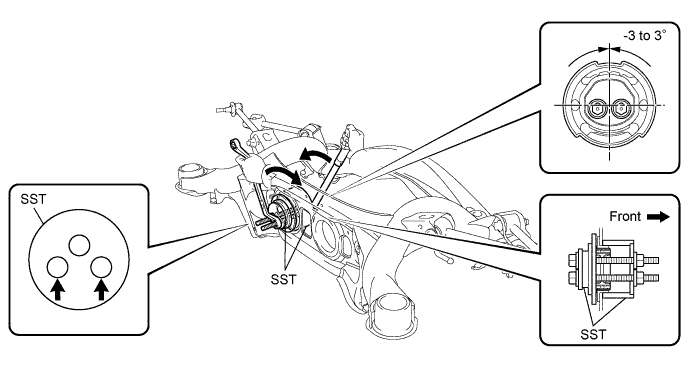

  1. Using SST, install a new No. 1 rear differential mount cushion.


    Lexus Is250, Is220D. Gse20 Ale20.Differential.Differential System.Differential Mount Cushion (For 2Ad-Fhv) Installation

    SST
    09570-24011
    09316-12010
    NOTICE:
    1. Temporarily install the mount cushion to the member in order to prevent it from tilting and install the SST.
    2. Be sure to use the SST with the correct combination.
    3. Make sure that the SST contacts the entire circumference of the mount cushion.


2. INSTALL NO. 2 REAR DIFFERENTIAL MOUNT CUSHION

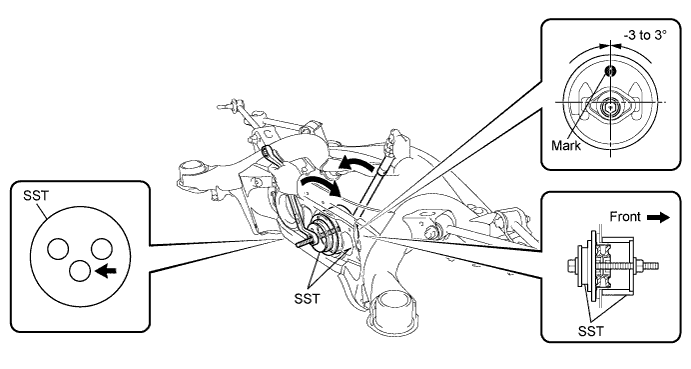

  1. Using SST, install a new No. 2 rear differential mount cushion.


    Lexus Is250, Is220D. Gse20 Ale20.Differential.Differential System.Differential Mount Cushion (For 2Ad-Fhv) Installation

    SST
    09570-24011
    09316-12010
    NOTICE:
    1. Temporarily install the mount cushion to the member in order to prevent it from tilting and install the SST.
    2. Be sure to use the SST with the correct combination.
    3. Be sure to install the mount cushion so that the identification rubber marks are at the right and left.


3. INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY
(Click here)
