CAN COMMUNICATION SYSTEM (for LHD) - Center Airbag Sensor Communication Stop Mode


DESCRIPTION


Detection Item
Symptom
Trouble Area
Center Airbag Sensor Communication Stop Mode
  1. "SRS Airbag" is not displayed on the "Communication Bus Check" screen of the intelligent tester
  2. Applies to "Center Airbag Sensor Communication Stop Mode" in the "DTC COMBINATION TABLE"
  1. Power source circuit of the center airbag sensor
  2. Center airbag sensor branch line or connector
  3. Center airbag sensor
HINT:
"SRS Airbag" refers to the circuit that includes the center airbag sensor.

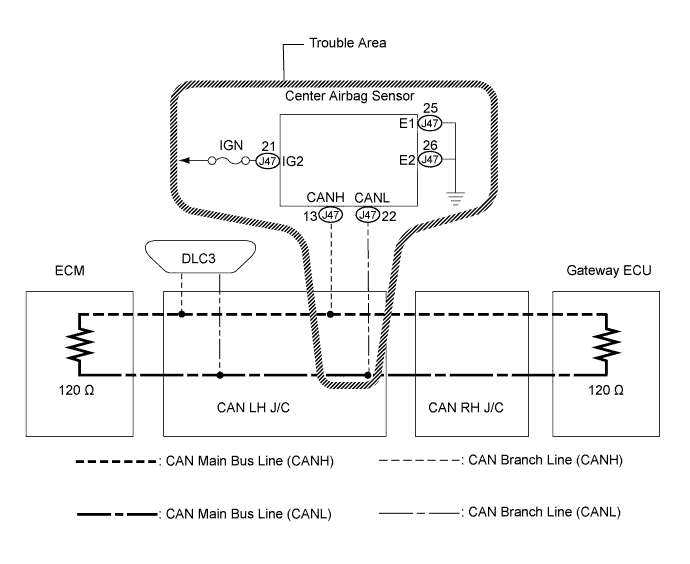

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Center Airbag Sensor Communication Stop Mode


INSPECTION PROCEDURE

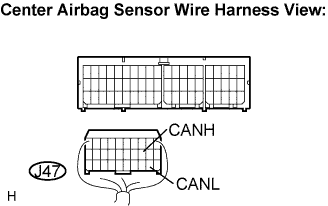

1.CHECK CAN BUS LINE FOR OPEN (CENTER AIRBAG SENSOR BRANCH LINE)

  1. Turn the engine switch off.

  1. Disconnect the center airbag sensor connector (J47).



    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Center Airbag Sensor Communication Stop Mode

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Value
    J47-13 (CANH) - J47-22 (CANL)
    		Engine switch off
    		54 to 69 Ω


NG
REPAIR OR REPLACE CENTER AIRBAG SENSOR BRANCH LINE OR CONNECTOR (CANH, CANL)
OK

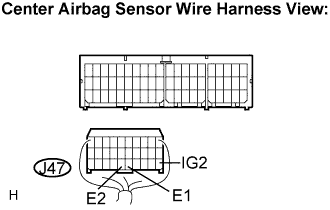

2.CHECK WIRE HARNESS (IG2, E1, E2)


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Center Airbag Sensor Communication Stop Mode

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Value
    J47-25 (E1) - Body ground
    		Always
    		Below 1 Ω
    J47-26 (E2) - Body ground
    		Always
    		Below 1 Ω

  1. Measure the voltage according to the value(s) in the table below.

    Standard voltage:
    Tester Connection
    		Condition
    		Specified Value
    J47-21 (IG2) - Body ground
    		Engine switch on (IG)
    		10 to 14 V


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

REPLACE CENTER AIRBAG SENSOR ASSEMBLY
