Abs Solenoid Relay (W/ Vdim) On-Vehicle Inspection

Brake. Lexus Is250, Is220D. Gse20 Ale20
Brake Control. Lexus Is250, Is220D. Gse20 Ale20

  1. INSPECT ABS SOLENOID RELAY

Abs Solenoid Relay (W/ Vdim) -- On-Vehicle Inspection



1. INSPECT ABS SOLENOID RELAY

  1. Remove the ABS solenoid relay.



    Lexus Is250, Is220D. Gse20 Ale20.Brake Control.Vehicle Stability Control System (W/ Vdim).Abs Solenoid Relay (W/ Vdim) On-Vehicle Inspection

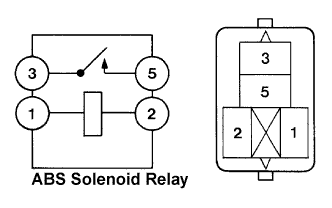

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Specified Condition
    1 - 2
    		Below 1 Ω
    3 - 5
    		10 kΩ or higher
    (When battery voltage is not applied between terminals)
    3 - 5
    		Below 1 Ω
    (When battery voltage is applied to terminals 1 and 2)
    If the value is not as specified, replace the ABS solenoid relay.
