Door Mirror Foot Light Removal

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Lighting. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

  2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

  3. REMOVE COURTESY LIGHT ASSEMBLY

  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

  5. REMOVE FRONT INNER DOOR GLASS WEATHERSTRIP

  6. REMOVE FRONT DOOR TRIM COVER

  7. REMOVE DOOR FRAME GARNISH

  8. REMOVE OUTER MIRROR CONTROL ECU (w/ Memory)

  9. REMOVE OUTER MIRROR PROTECTOR

  10. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY

Door Mirror Foot Light -- Removal



1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG


    Lexus Is250, Is220D. Gse20 Ale20
  1. Using a screwdriver wrapped with protective tape, disengage the 3 claws, and remove the front door inside handle bezel plug.



2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20
  1. Using a screwdriver wrapped with protective tape, disengage the 4 claws and the 2 clips.

  1. Disconnect the connector and remove the power window regulator master switch assembly.



3. REMOVE COURTESY LIGHT ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20
  1. Disengage the claw and remove the courtesy light assembly.

  1. Disconnect the connector.



4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20
  1. Remove the 2 screws.

  1. Using the clip remover, disengage the 9 clips.



    Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.Door Mirror Foot Light  Removal
  1. Pull out the front door trim board in the direction indicated by the arrow.

  1. Remove the reference bosses from the front door panel.

  1. Raise the front door trim board to disengage the 4 claws and remove the front door trim board together with the front door inner glass weatherstrip.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Disconnect the cables and each connector from the back side of the inside handle and remove the front door trim board sub-assembly.

  1. Remove the 2 front door trim board retainers (green) from the front door trim board.



5. REMOVE FRONT INNER DOOR GLASS WEATHERSTRIP


    Lexus Is250, Is220D. Gse20 Ale20
  1. Disengage the 4 clips as shown in the illustration and remove the front door inner glass weatherstrip from the front door trim board.



6. REMOVE FRONT DOOR TRIM COVER


    Lexus Is250, Is220D. Gse20 Ale20
  1. Remove the screw.

  1. Using the clip remover, disengage the 6 clips and remove the front door trim cover.



7. REMOVE DOOR FRAME GARNISH


    Lexus Is250, Is220D. Gse20 Ale20
  1. Using the clip remover, remove the 2 clips and the door frame garnish.



8. REMOVE OUTER MIRROR CONTROL ECU (w/ Memory)


    Lexus Is250, Is220D. Gse20 Ale20
  1. Disconnect each connector.

  1. Remove the 2 screws and the outer mirror control ECU.



9. REMOVE OUTER MIRROR PROTECTOR


    Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.Door Mirror Foot Light  Removal
  1. Disengage the clamp and disconnect the connector.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Remove the outer mirror protector.

    HINT:
    Remove the remaining tape on the door.


10. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20
  1. Remove the 3 nuts.



    Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.Door Mirror Foot Light  Removal

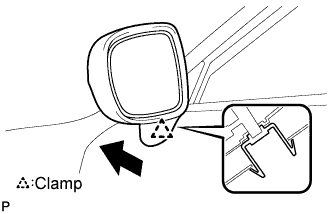

  1. Disengage the clamp and remove the outer rear view mirror assembly.
