Television Camera Ecu -- Installation |
| 1. INSTALL TELEVISION CAMERA CONTROLLER (for LHD) |

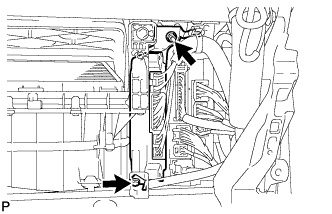

Install the television camera controller with the nut and bolt.
 |
Connect each connector.
| 2. INSTALL TELEVISION CAMERA CONTROLLER (for RHD) |
Install the television camera controller with the 2 nuts.
Install the television camera controller with power source control ECU with the nut and bolt.
 |
Connect each connector.
| 3. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY |
Connect the connectors.
 |
Engage the 2 claws.
Install the glove compartment door assembly with the 5 screws.
| 4. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY |
| 5. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
Engage the 4 clips and install the No. 2 instrument panel under cover sub-assembly.
 |
| 6. INSTALL SIDE INSTRUMENT PANEL |
Engage the 5 claws and 3 clips, and then install the side instrument panel LH.
 |
| 7. INSTALL FRONT DOOR OPENING TRIM COVER |
Engage the 5 claws and 3 clips, and then install the side instrument panel LH.
|
| 8. INSTALL FRONT DOOR SCUFF PLATE (w/o Illumination) |
Engage the 4 clips.
 |
Engage the 7 claws, and install the front door scuff plate LH.
 |
| 9. INSTALL FRONT DOOR SCUFF PLATE (w/ Illumination) |
Connect the connector.
Engage the 4 clips.
|
Engage the 7 claws, and install the front door scuff plate LH.
|
| 10. ADJUST TELEVISION CAMERA |
