Back Door Courtesy Switch -- Installation |

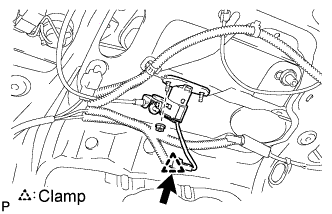

| 1. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY |
Install the luggage compartment door lock assembly with the 2 bolts.
- Torque:
- 5.5 N*m{56 kgf*cm, 49 in.*lbf}
 |
Engage the clamp.
Connect the connector.

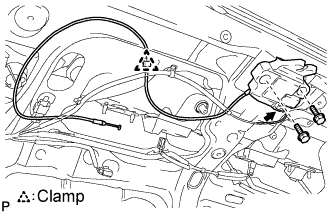

| 2. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY |
Connect the luggage compartment door lock control cable.
 |
Install the luggage compartment door lock cylinder with the nut.
- Torque:
- 5.5 N*m{56 kgf*cm, 49 in.*lbf}
Connect the connector and clamp.
| 3. INSTALL LUGGAGE COMPARTMENT DOOR REINFORCEMENT |
| 4. INSTALL LUGGAGE COMPARTMENT DOOR COVER |
| 5. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP |
