REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
REMOVE NO. 1 UPPER CONSOLE PANEL GARNISH (for Automatic Transmission)
REMOVE NO. 2 UPPER CONSOLE PANEL GARNISH (for Automatic Transmission)
REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
Console Box Light -- Removal |
| 1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) |
Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.
 |
| 2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) |
Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.
 |
| 3. REMOVE NO. 1 UPPER CONSOLE PANEL GARNISH (for Automatic Transmission) |
Using a moulding remover, disengage the claw.
 |
Pull the upper No. 1 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove it.
 |
| 4. REMOVE NO. 2 UPPER CONSOLE PANEL GARNISH (for Automatic Transmission) |
Using a moulding remover, disengage the claw.
 |
Pull the upper No. 2 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove it.
 |
| 5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) |
Disengage the 8 clips.
 |
Disconnect the connectors and remove the console panel sub-assembly.
| 6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) |
Open the snap.
 |
Disengage the 7 claws and 2 clips, and then remove the rear console panel sub-assembly.
 |
| 7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) |
Open the snap.
 |
Pull the front console panel sub-assembly in the direction indicated by the arrow to disengage the 6 clips and remove it.
 |
| 8. REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY |

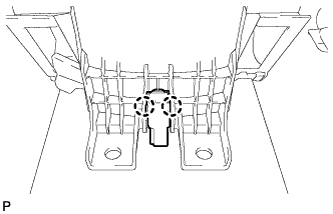

Disengage the 2 claws and remove the console box illumination light assembly.
 |
