Vanity Light Removal

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Lighting. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE VISOR BRACKET COVER

  2. REMOVE VISOR ASSEMBLY

  3. REMOVE VANITY LIGHT ASSEMBLY

Vanity Light -- Removal



1. REMOVE VISOR BRACKET COVER


    Lexus Is250, Is220D. Gse20 Ale20

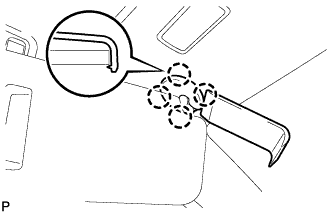

  1. Using a moulding remover, disengage the 4 claws and remove the visor bracket cover.

    HINT:
    Use the same procedure to remove the cover on the other side.


2. REMOVE VISOR ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 2 screws and visor assembly LH.



3. REMOVE VANITY LIGHT ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.Vanity Light Removal

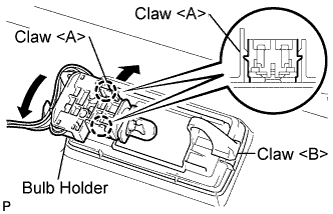

  1. Disengage the claw <A> and separate the bulb holder from the vanity light, as shown in the illustration.

  1. Disengage the claw <B> and remove the vanity light assembly.

    HINT:
    Use the same procedure to remove the light on the other side.
