INSTALL STOP LIGHT SWITCH ASSEMBLY
INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
INSTALL SIDE INSTRUMENT PANEL LH
INSTALL FRONT DOOR OPENING TRIM COVER LH
INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination)
INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
INSPECT SRS WARNING LIGHT
Stop Light Switch -- Installation |
1. INSTALL STOP LIGHT SWITCH ASSEMBLY |

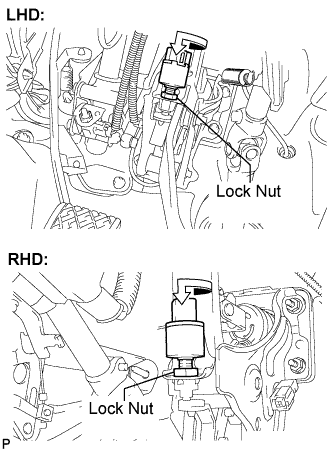

Temporarily install the stop light switch assembly with the lock nut.

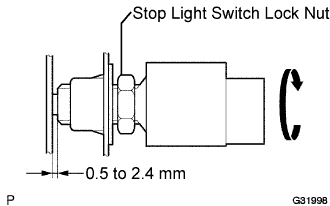

Turn the stop light switch assembly so that the clearance between the threaded area of the switch and the area where the pedal makes contact is between 0.5 and 2.4 mm (0.020 to 0.095 in. ). Fully tighten the lock nut.
- Torque:
- 17 N*m{170 kgf*cm, 12 ft.*lbf}
Connect the connector to the stop light switch assembly.
2. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY |
Connect the connector.
- NOTICE:
- When handling the airbag connector, take care not to damage the airbag wire harness.
Install the driver side knee airbag assembly with the 4 bolts.
- Torque:
- 10 N*m{102 kgf*cm, 7 ft.*lbf}
3. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY |
Connect the connectors.
Engage the 7 clips and install the lower instrument panel finish panel sub-assembly.
4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
Connect the connectors.

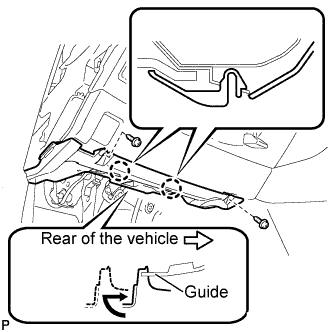

Insert the No. 1 instrument panel under cover sub-assembly into the guide as shown in the illustration.
Engage the 2 claws.
Install the No. 1 instrument panel under cover sub-assembly with the 2 screws <E>.
5. INSTALL SIDE INSTRUMENT PANEL LH |

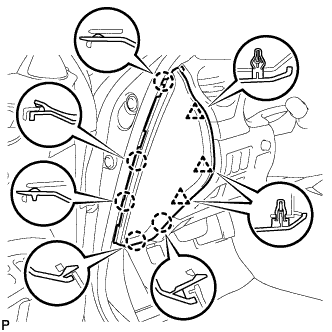

Engage the 5 claws and 3 clips, and then install the side instrument panel LH.
6. INSTALL FRONT DOOR OPENING TRIM COVER LH |
Engage the 6 claws and install the front door opening trim cover LH.
7. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination) |

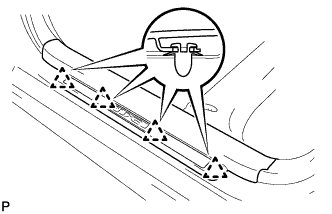

Engage the 4 clips.
Engage the 7 claws, and install the front door scuff plate LH.
8. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination) |
Connect the connector.
Engage the 4 clips.
Engage the 7 claws, and install the front door scuff plate LH.
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL |
10. PERFORM INITIALIZATION |
Some systems need initialization after reconnecting the cable to the negative battery terminal (Click here).
11. INSPECT SRS WARNING LIGHT |
(Click here)
