DTC B1660/43 Passenger Airbag ON / OFF Indicator Circuit Malfunction |
DESCRIPTION
The passenger airbag ON/OFF indicator circuit consists of the center airbag sensor assembly and the clock assembly.The passenger airbag ON/OFF indicator indicates the operation condition of the front passenger airbag assembly and the front seat side airbag assembly (passenger side).DTC B1660/43 is recorded when a malfunction is detected in the passenger airbag ON/OFF indicator circuit.DTC No.
| DTC Detecting Condition
| Trouble Area
|
B1660/43
| - The center airbag sensor assembly receives an open circuit signal, a short circuit to ground signal or a short circuit to B+ signal in the passenger airbag ON/OFF indicator circuit for 2 seconds.
- Passenger airbag ON/OFF indicator malfunction
- Center airbag sensor assembly malfunction
| - Instrument panel wire
- Clock assembly
- Center airbag sensor assembly
|

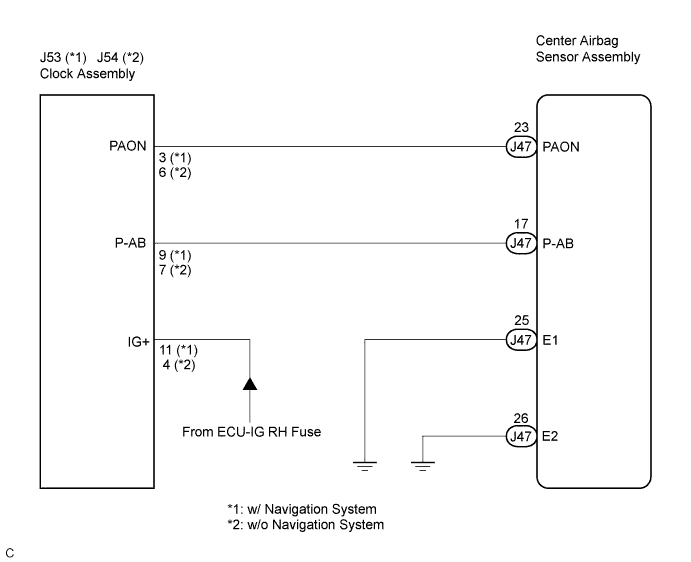

WIRING DIAGRAM
INSPECTION PROCEDURE
1.CHECK PASSENGER AIRBAG ON/OFF INDICATOR CONDITION |
Turn the engine switch on (IG).
Check the passenger airbag ON/OFF indicator operation.
- HINT:
- Refer to the normal condition of the passenger airbag ON/OFF indicator (Click here).
- Result:
ON/OFF Indicator Illumination
| Proceed to
|
Always ON
| A
|
OFF
| B
|
2.CHECK CONNECTION OF CONNECTORS |
Turn the engine switch off.
Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
Check that the connectors are properly connected to the center airbag sensor assembly and the clock assembly.
- OK:
- The connectors are properly connected.
| CONNECT CONNECTORS, THEN GO TO STEP 1 |
|
|
3.CHECK PASSENGER AIRBAG ON / OFF INDICATOR |
Turn the engine switch off.
Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
Disconnect the connectors from the center airbag sensor assembly.
Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
Turn the engine switch on (IG).
Check the passenger airbag ON/OFF indicator operation.
- OK:
- The passenger airbag ON/OFF indicator does not come on.

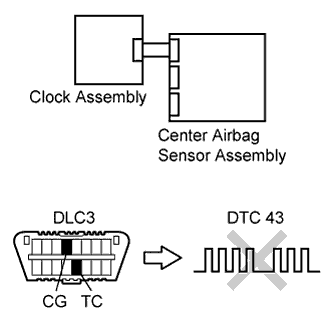

4.CHECK CENTER AIRBAG SENSOR ASSEMBLY |
Connect the connectors to the center airbag sensor assembly and the clock assembly.
Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
Turn the engine switch on (IG), and wait for at least 60 seconds.
Clear the DTCs stored in memory (Click here).
Turn the engine switch off.
Turn the engine switch on (IG), and wait for at least 60 seconds.
Check for DTCs (Click here).
- OK:
- DTC B1660/43 is not output.
- HINT:
- Codes other than DTC B1660/43 may be output at this time, but they are not related to this check.
| REPLACE CENTER AIRBAG SENSOR ASSEMBLY |
|
|
OK |
|
|
|
USE SIMULATION METHOD TO CHECK |
|

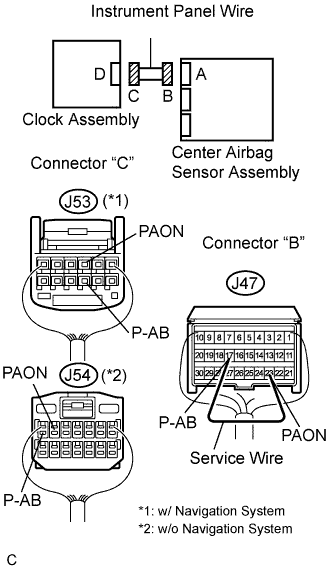

5.CHECK INSTRUMENT PANEL WIRE (OPEN) |
Turn the engine switch off.
Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
Disconnect the connector from the clock assembly.
Using a service wire, connect J47-23 (PAON) and J47-17 (P-AB) of connector "B".
- NOTICE:
- Do not forcibly insert a service wire into the terminals of the connector when connecting.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
- w/ Navigation system:
Tester connection
| Condition
| Specified condition
|
J53-3 (PAON) - J53-9 (P-AB)
| Always
| Below 1 Ω
|
- w/o Navigation system:
Tester connection
| Condition
| Specified condition
|
J54-6 (PAON) - J54-7 (P-AB)
| Always
| Below 1 Ω
|
| REPAIR OR REPLACE INSTRUMENT PANEL WIRE |
|
|

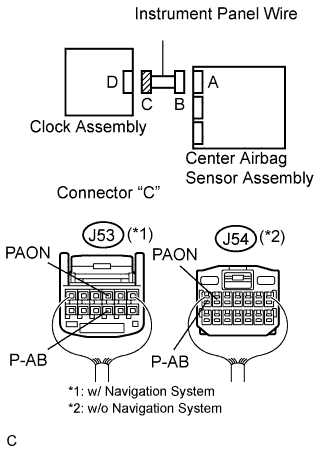

6.CHECK INSTRUMENT PANEL WIRE (SHORT) |
Disconnect the service wire from connector "B".
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
- w/ Navigation system:
Tester connection
| Condition
| Specified condition
|
J53-3 (PAON) - J53-9 (P-AB)
| Always
| 1 MΩ or higher
|
- w/o Navigation system:
Tester connection
| Condition
| Specified condition
|
J54-6 (PAON) - J54-7 (P-AB)
| Always
| 1 MΩ or higher
|
| REPAIR OR REPLACE INSTRUMENT PANEL WIRE |
|
|
7.CHECK INSTRUMENT PANEL WIRE (SHORT TO GROUND) |
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
- w/ Navigation system:
Tester connection
| Condition
| Specified condition
|
J53-3 (PAON) - Body ground
| Always
| 1 MΩ or higher
|
J53-9 (P-AB) - Body ground
| Always
| 1 MΩ or higher
|
- w/o Navigation system:
Tester connection
| Condition
| Specified condition
|
J54-6 (PAON) - Body ground
| Always
| 1 MΩ or higher
|
J54-7 (P-AB) - Body ground
| Always
| 1 MΩ or higher
|
| REPAIR OR REPLACE INSTRUMENT PANEL WIRE |
|
|
8.CHECK INSTRUMENT PANEL WIRE (SHORT TO B+) |
Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
Turn the engine switch on (IG).
Measure the voltage according to the value(s) in the table below.
- Standard voltage:
- w/ Navigation system:
Tester connection
| Condition
| Specified condition
|
J53-3 (PAON) - Body ground
| Engine switch on (IG)
| Below 1 V
|
J53-9 (P-AB) - Body ground
| Engine switch on (IG)
| Below 1 V
|
- w/o Navigation system:
Tester connection
| Condition
| Specified condition
|
J54-6 (PAON) - Body ground
| Engine switch on (IG)
| Below 1 V
|
J54-7 (P-AB) - Body ground
| Engine switch on (IG)
| Below 1 V
|
| REPAIR OR REPLACE INSTRUMENT PANEL WIRE |
|
|
9.CHECK CONNECTION OF CONNECTORS |
Turn the engine switch off.
Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
Check that the connectors are properly connected to the center airbag sensor assembly and the clock assembly.
- OK:
- The connectors are properly connected.
10.CHECK INSTRUMENT PANEL WIRE (OPEN) |
Turn the engine switch off.
Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
Disconnect the connectors from the center airbag sensor assembly and the clock assembly.
Using a service wire, connect J47-23 (PAON) and J47-17 (P-AB) of connector "B".
- NOTICE:
- Do not forcibly insert a service wire into the terminals of the connector when connecting.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
- w/ Navigation system:
Tester connection
| Condition
| Specified condition
|
J53-3 (PAON) - J53-9 (P-AB)
| Always
| Below 1 Ω
|
- w/o Navigation system:
Tester connection
| Condition
| Specified condition
|
J54-6 (PAON) - J54-7 (P-AB)
| Always
| Below 1 Ω
|
| REPAIR OR REPLACE INSTRUMENT PANEL WIRE |
|
|
11.CHECK INSTRUMENT PANEL WIRE (SHORT) |
Disconnect the service wire from connector "B".
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
- w/ Navigation system:
Tester connection
| Condition
| Specified condition
|
J53-3 (PAON) - J53-9 (P-AB)
| Always
| 1 MΩ or higher
|
- w/o Navigation system:
Tester connection
| Condition
| Specified condition
|
J54-6 (PAON) - J54-7 (P-AB)
| Always
| 1 MΩ or higher
|
| REPAIR OR REPLACE INSTRUMENT PANEL WIRE |
|
|
12.CHECK INSTRUMENT PANEL WIRE (SHORT TO GROUND) |
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
- w/ Navigation system:
Tester connection
| Condition
| Specified condition
|
J53-3 (PAON) - Body ground
| Always
| 1 MΩ or higher
|
J53-9 (P-AB) - Body ground
| Always
| 1 MΩ or higher
|
- w/o Navigation system:
Tester connection
| Condition
| Specified condition
|
J54-6 (PAON) - Body ground
| Always
| 1 MΩ or higher
|
J54-7 (P-AB) - Body ground
| Always
| 1 MΩ or higher
|
| REPAIR OR REPLACE INSTRUMENT PANEL WIRE |
|
|
13.CHECK INSTRUMENT PANEL WIRE (SHORT TO B+) |
Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
Turn the engine switch on (IG).
Measure the voltage according to the value(s) in the table below.
- Standard voltage:
- w/ Navigation system:
Tester connection
| Condition
| Specified condition
|
J53-3 (PAON) - Body ground
| Engine switch on (IG)
| Below 1 V
|
J53-9 (P-AB) - Body ground
| Engine switch on (IG)
| Below 1 V
|
- w/o Navigation system:
Tester connection
| Condition
| Specified condition
|
J54-6 (PAON) - Body ground
| Engine switch on (IG)
| Below 1 V
|
J54-7 (P-AB) - Body ground
| Engine switch on (IG)
| Below 1 V
|
| REPAIR OR REPLACE INSTRUMENT PANEL WIRE |
|
|

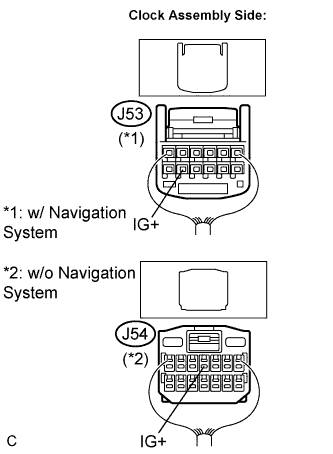

14.CHECK CLOCK ASSEMBLY (SOURCE VOLTAGE) |
Connect the connectors to the center airbag sensor assembly.
Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
Turn the engine switch on (IG).
Measure the voltage according to the value(s) in the table below.
- Standard voltage:
- w/ Navigation system:
Tester connection
| Condition
| Specified condition
|
J53-11 (IG+) - Body ground
| Engine switch on (IG)
| 10 to 14 V
|
- w/o Navigation system:
Tester connection
| Condition
| Specified condition
|
J54-4 (IG+) - Body ground
| Engine switch on (IG)
| 10 to 14 V
|
| REPAIR OR REPLACE WIRE HARNESS (CLOCK ASSEMBLY - BATTERY) OR BATTERY |
|
|
15.CHECK PASSENGER AIRBAG ON / OFF INDICATOR |
Turn the engine switch off.
Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
Connect the connector to the clock assembly.
Disconnect the connectors from the center airbag sensor assembly.
Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
Turn the engine switch on (IG).
Check the indicator according to the conditions in the table below.
- Result:
Tester connection
| Condition
| Passenger airbag ON/OFF indicator
|

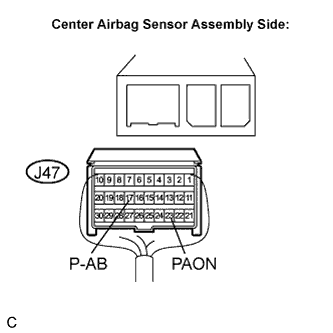

J47-23 (PAON) - Body ground
| Engine switch on (IG)
| "ON" comes on
|
J47-17 (P-AB) - Body ground
| Engine switch on (IG)
| "OFF" comes on
|
16.CHECK CENTER AIRBAG SENSOR ASSEMBLY |
Turn the engine switch off.
Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
Connect the connectors to the center airbag sensor assembly.
Connect the negative (-) terminal cable to the battery and wait for at least 2 seconds.
Turn the engine switch on (IG), and wait for at least 60 seconds.
Clear the DTCs stored in memory (Click here).
Turn the engine switch off.
Turn the engine switch on (IG), and wait for at least 60 seconds.
Check for DTCs (Click here).
- OK:
- DTC B1660/43 is not output.
- HINT:
- Codes other than DTC B1660/43 may be output at this time, but they are not related to this check.
| REPLACE CENTER AIRBAG SENSOR ASSEMBLY |
|
|
OK |
|
|
|
USE SIMULATION METHOD TO CHECK |
|
