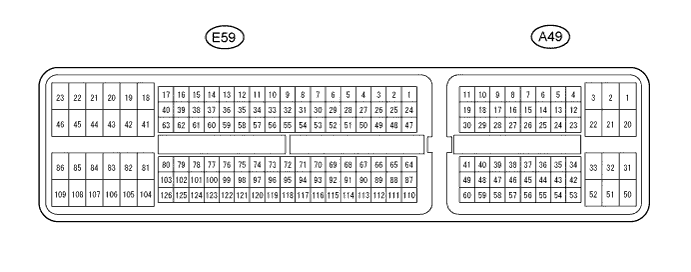

Cruise Control System (For 2Ad-Fhv) -- Terminals Of Ecm |
| CHECK ECM |
| Symbols (Terminal No.) | Wiring Color | Terminal Description | Condition | Specified Condition |
| A49-26 (TC) - E59-109 (E1) | V - BR | DTC output signal | Engine switch on (IG) | 10 to 14 V |
| A49-26 (TC) - E59-109 (E1) | V - BR | DTC output signal | Connect terminals TC and CG of DLC3 | Below 1 V |
| A49-35 (STP) - E59-109 (E1) | R-B - BR | Stop light signal | Engine switch on (IG), Depress brake pedal | 10 to 14 V |
| A49-35 (STP) - E59-109 (E1) | R-B - BR | Stop light signal | Engine switch on (IG), Release brake pedal | Below 1 V |
| A49-23 (CCS) - E59-109 (E1) | L-B - BR | Cruise control main switch circuit | Engine switch on (IG) | 10 to 14 V |
| A49-23 (CCS) - E59-109 (E1) | L-B - BR | Cruise control main switch circuit | CANCEL switch ON | 6.6 to 10.1 V |
| A49-23 (CCS) - E59-109 (E1) | L-B - BR | Cruise control main switch circuit | SET/COAST switch ON | 4.5 to 7.1 V |
| A49-23 (CCS) - E59-109 (E1) | L-B - BR | Cruise control main switch circuit | RES/ACC switch ON | 2.3 to 4.0 V |
| A49-23 (CCS) - E59-109 (E1) | L-B - BR | Cruise control main switch circuit | MAIN switch ON | Below 1 V |
| A49-34 (ST1-) - E59-109 (E1) | G-W - BR | Stop light signal | Engine switch on (IG), Depress brake pedal | Below 1 V |
| A49-34 (ST1-) - E59-109 (E1) | G-W - BR | Stop light signal | Release brake pedal Engine switch on (IG) | 10 to 14 V |
