  1. CHECK ECM

Cruise Control System -- Terminals Of Ecm

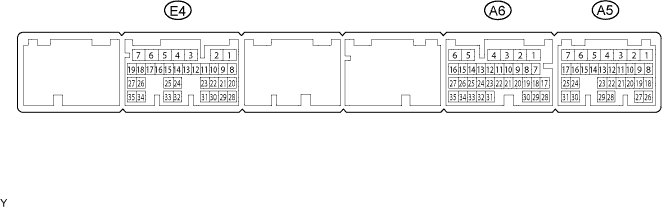

CHECK ECM

Lexus Is250, Is220D. Gse20 Ale20.Cruise Control.Cruise Control System.Cruise Control System Terminals Of Ecm


Symbols (Terminals No.)
Wiring Color
Terminal Description
Condition
Specified Condition
A6-3 (TC) - E4-7 (E1)
V - BR
Ground
Engine switch on (IG)
10 to 14 V
A6-3 (TC) - E4-7 (E1)
V - BR
Ground
Connect terminals TC and CG of DLC3
Below 1 V
A6-4 (STP) - E4-7 (E1)
R-B - BR
Stop light signal
Engine switch on (IG), Depress brake pedal
10 to 14 V
A6-4 (STP) - E4-7 (E1)
R-B - BR
Stop light signal
Engine switch on (IG), Release brake pedal
Below 1 V
A6-31 (CCS) - E4-7 (E1)
L-B - BR
Cruise control main switch circuit
Engine switch on (IG)
10 to 14 V
A6-31 (CCS) - E4-7 (E1)
L-B - BR
Cruise control main switch circuit
CANCEL switch ON
6.6 to 10.1 V
A6-31 (CCS) - E4-7 (E1)
L-B - BR
Cruise control main switch circuit
SET/COAST switch ON
4.5 to 7.1 V
A6-31 (CCS) - E4-7 (E1)
L-B - BR
Cruise control main switch circuit
RES/ACC switch ON
2.3 to 4.0 V
A6-31 (CCS) - E4-7 (E1)
L-B - BR
Cruise control main switch circuit
MAIN switch ON
Below 1 V
A5-8 (ST1-) - E4-7 (E1)
G-W - BR
Stop light signal
Engine switch on (IG), Depress brake pedal
Below 1 V
A5-8 (ST1-) - E4-7 (E1)
G-W - BR
Stop light signal
Release brake pedal
Engine switch on (IG)
10 to 14 V
